Bonnell 805 RX Electric Dirt Bike

$8,250.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Build Option Factory Boxed Built and Ready to Ride

Preorders are now open for the Bonnell 805 RX. Reserve yours through Radmoto and contact our Portsmouth, New Hampshire team for current allocation and estimated delivery timing.

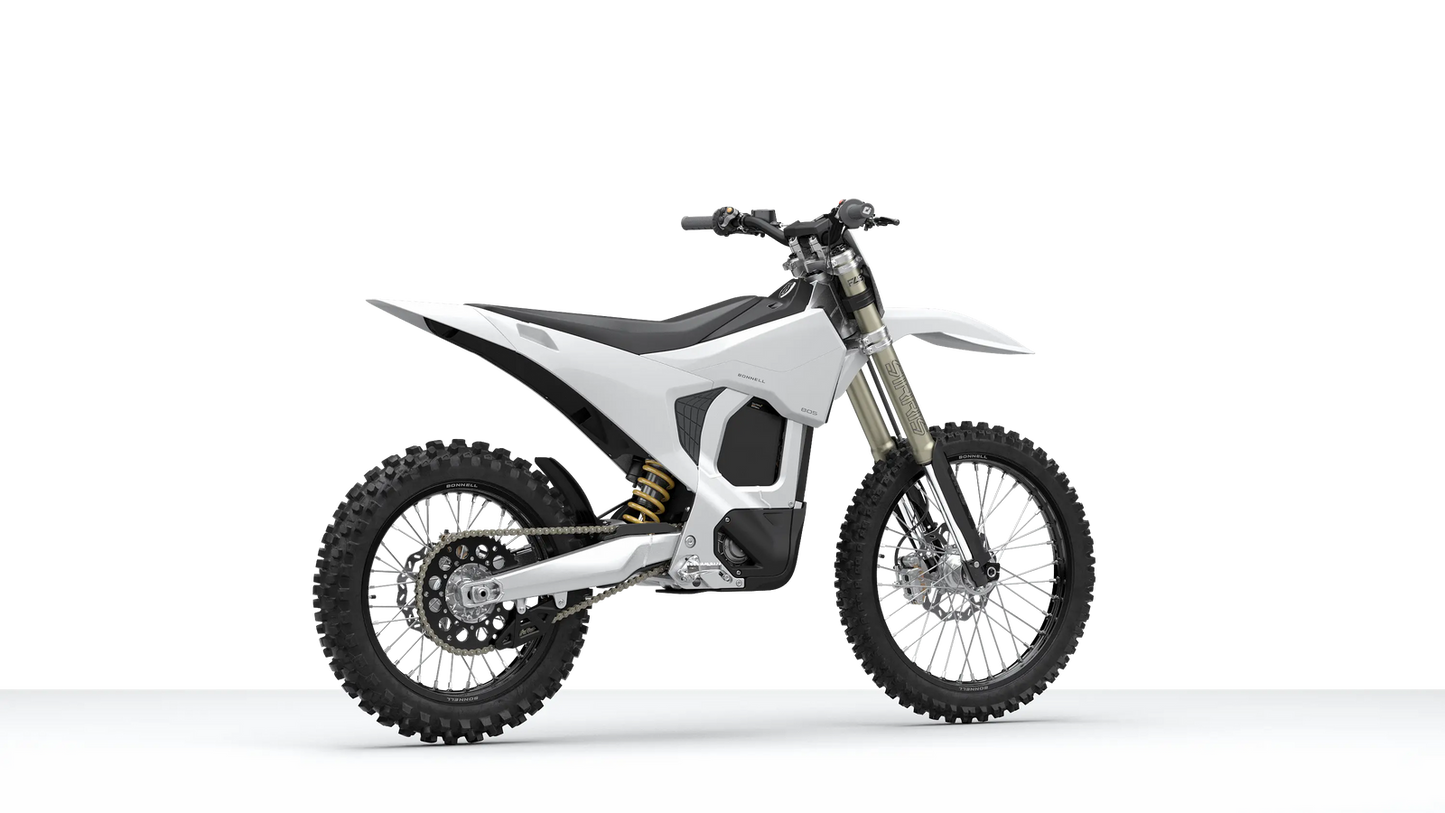

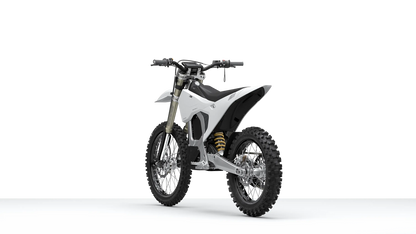

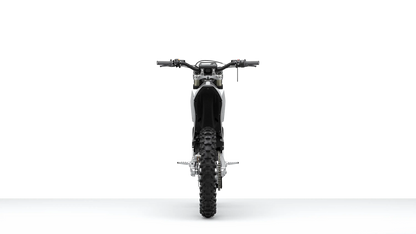

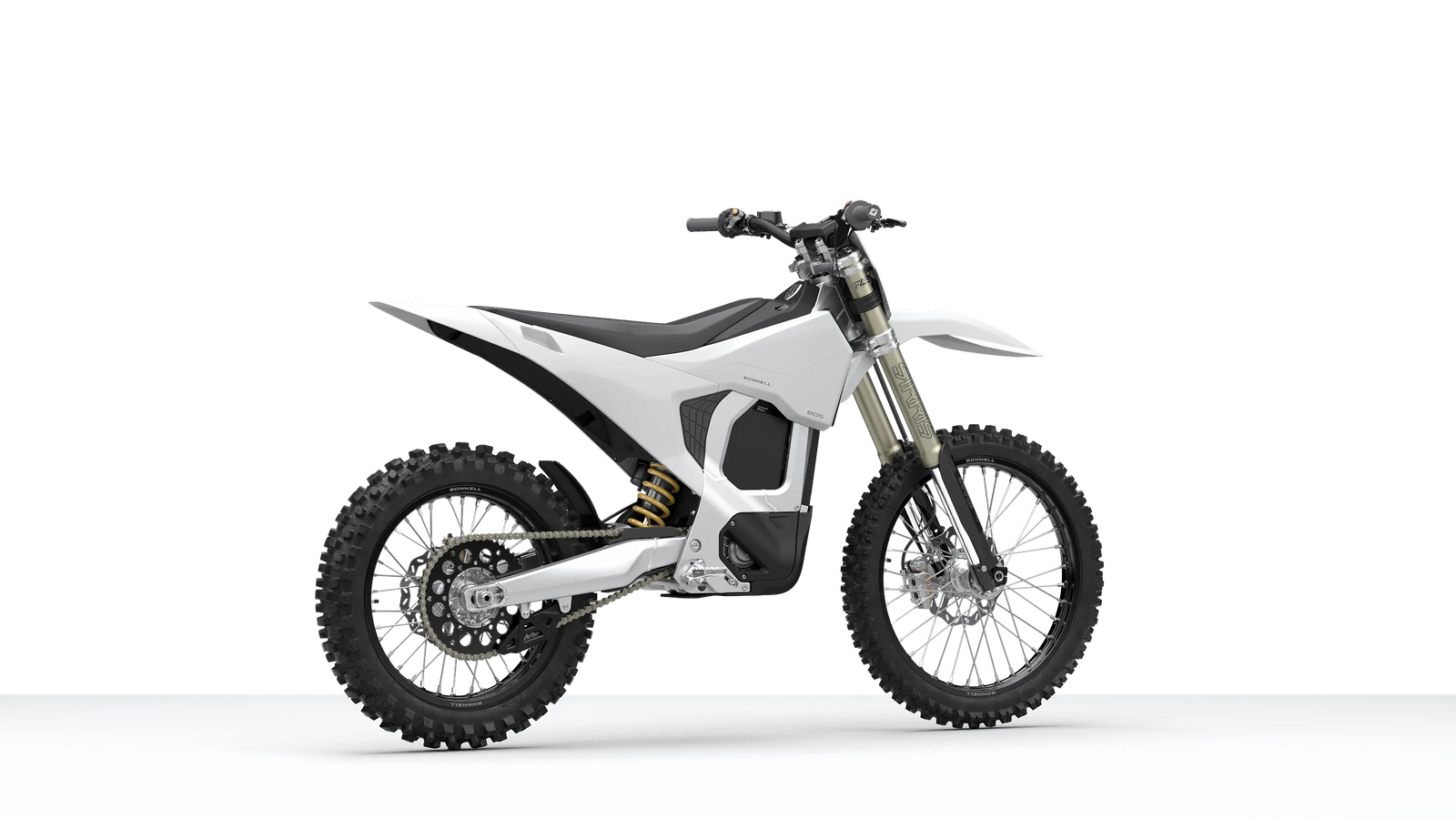

Bonnell 805 RX Electric Dirt Bike

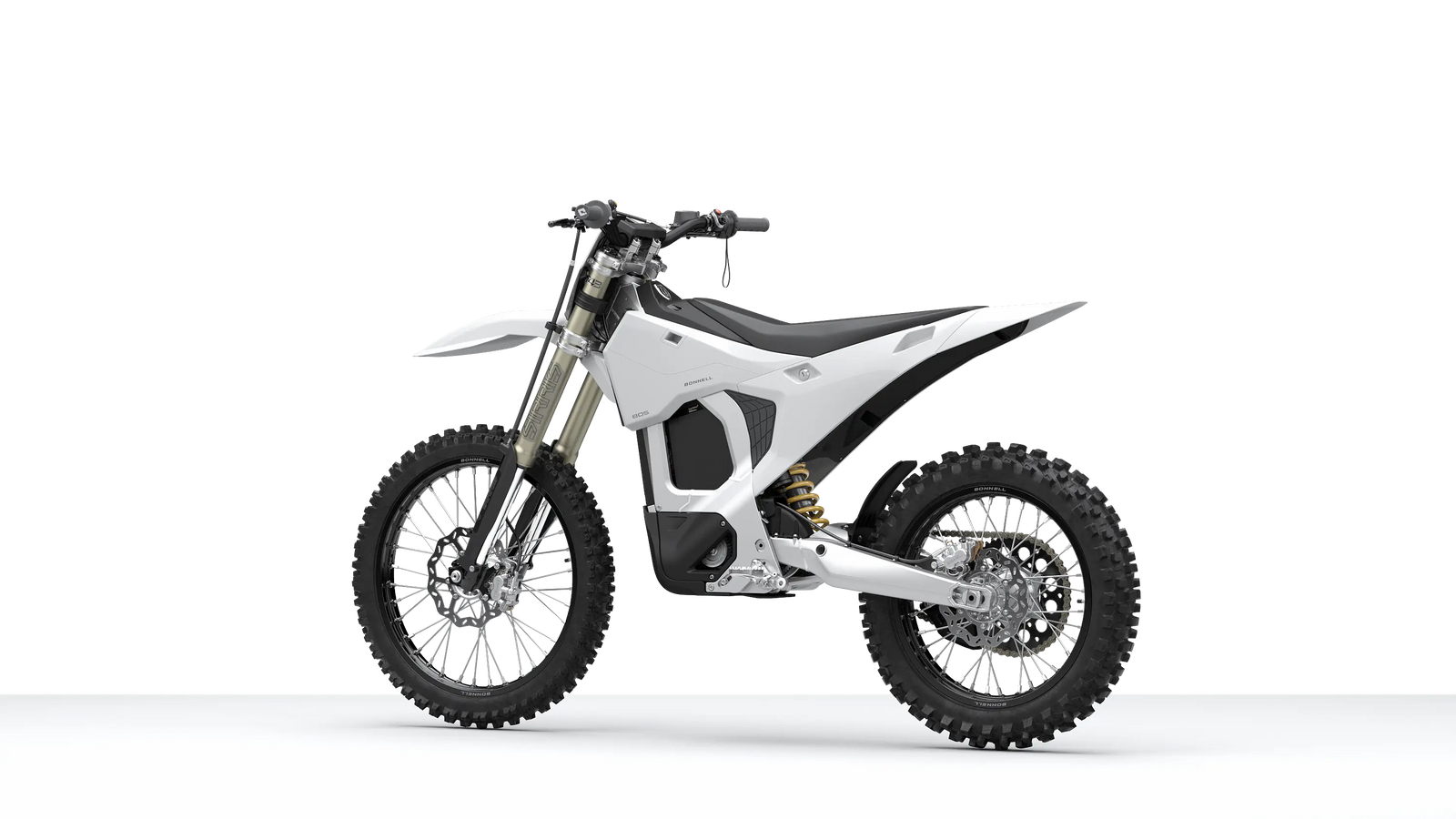

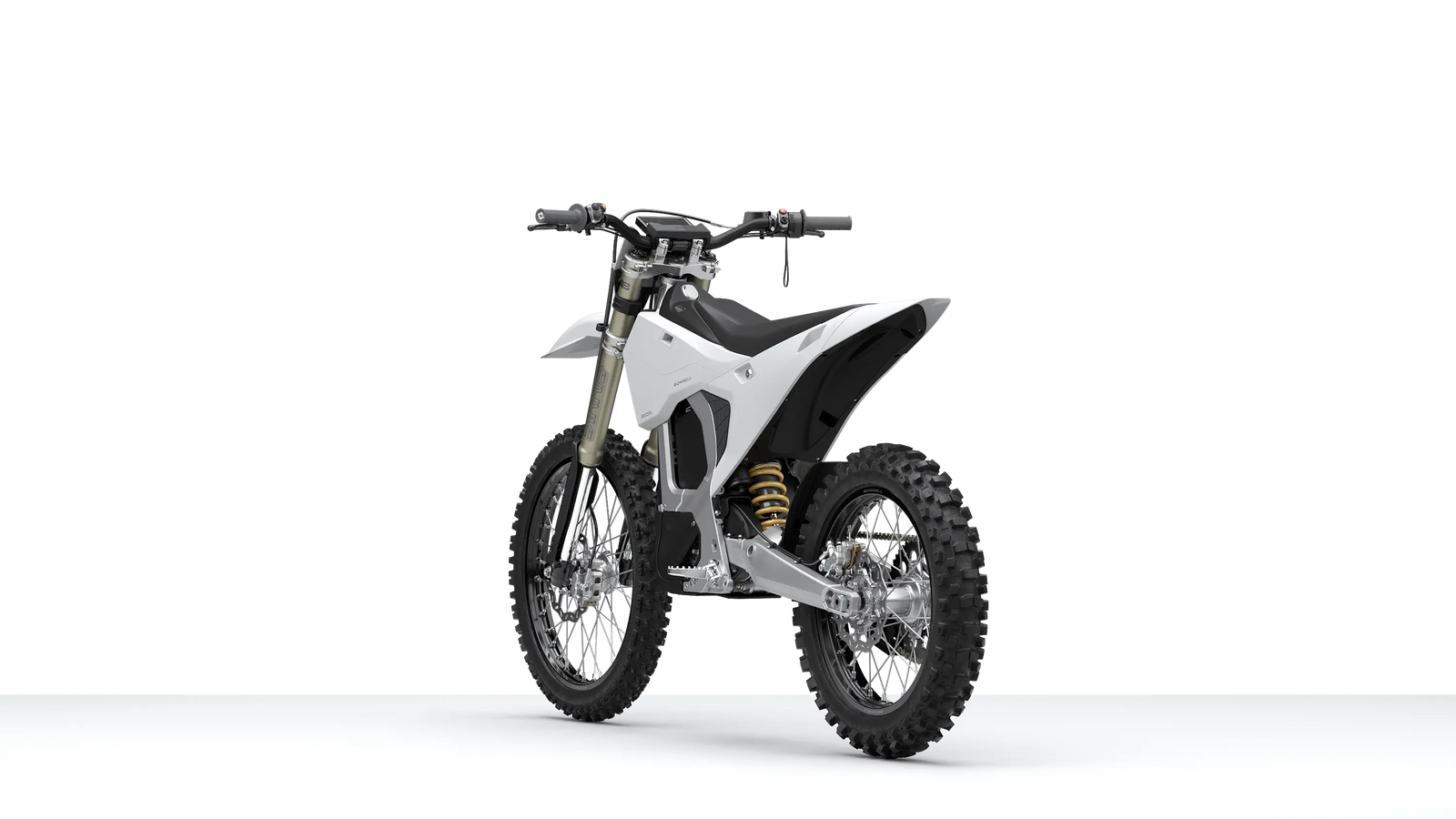

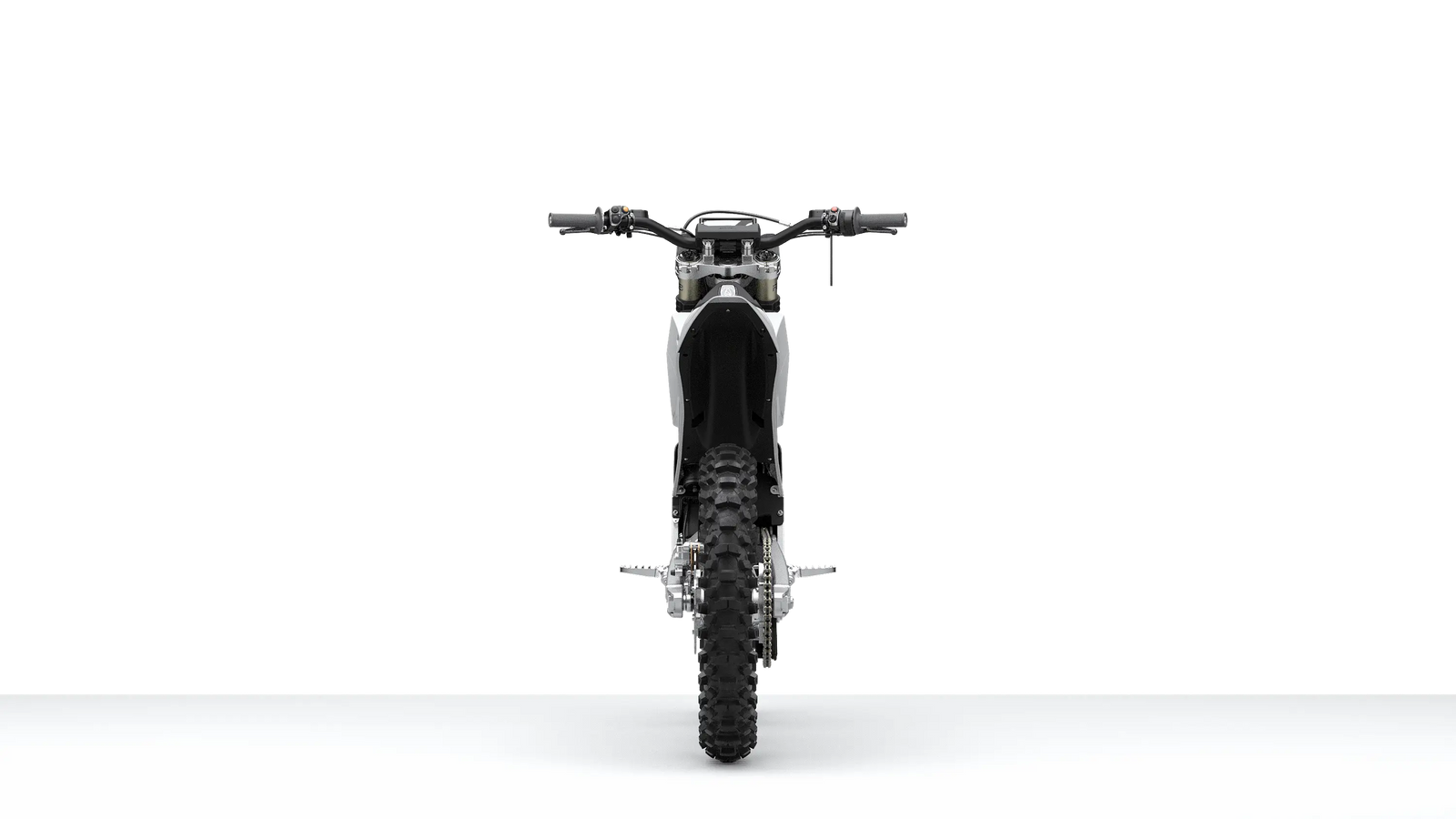

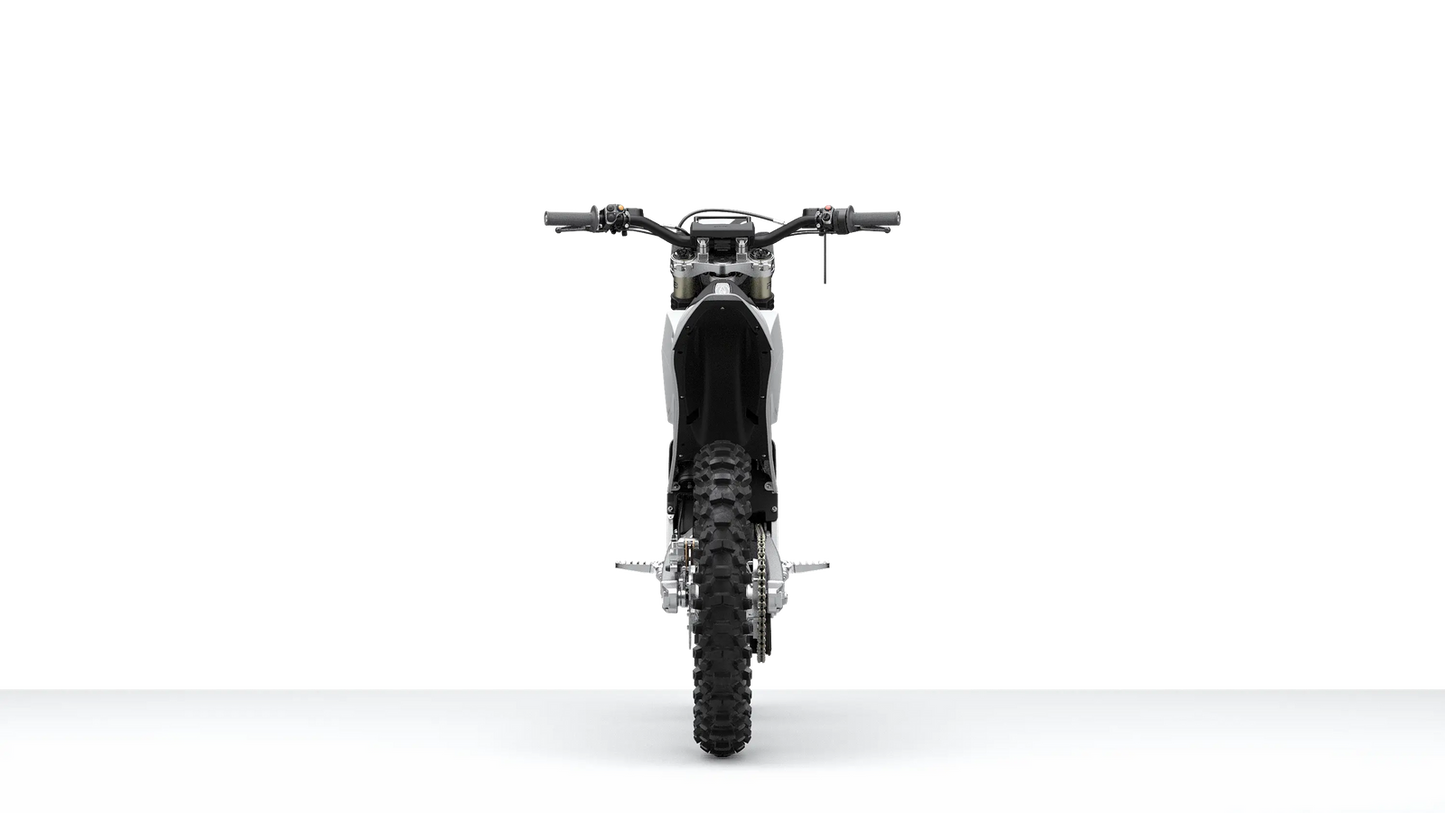

The Bonnell 805 RX is a mid-size, off-road electric dirt bike built to combine serious motorcycle performance with a lighter, more adaptable platform. Its in-house powertrain produces 56 hp (42 kW) peak power and 805 Nm (594 lb-ft) of rear-wheel torque, with a manufacturer-estimated top speed above 80 mph.

A forged-aluminum chassis, 21/18-inch wheels, fully adjustable Sirris suspension, swappable battery and Bonnell's Pulse Control System make the 805 RX equally compelling for technical trails, hard enduro and motocross-style riding. Five customizable ride modes let riders tune power, torque, throttle response, regenerative braking and rider aids through the Bonnell e-Moto app.

Key Features

56 hp / 42 kW peak power
805 Nm / 594 lb-ft rear-wheel torque
80+ mph manufacturer-estimated top speed
218 lb (99 kg) vehicle weight
3.9 kWh swappable Core battery
Five customizable ride modes plus reverse
21-inch front and 18-inch rear wheels
245 mm Sirris suspension travel front and rear
Forged-aluminum frame and hydroformed swingarm
Bonnell dual-piston forged brakes

Battery and Charging

The standard 805 RX includes Bonnell's removable 3.9 kWh Core battery, which can be charged on or off the bike. The included 1,500W charger works with 110V or 220V power and is rated by Bonnell for an approximately two-hour full charge. An optional 2,500W fast charger can charge in under one hour on 220V. A 4.7 kWh Race battery is planned as an optional accessory.

Pulse Control System

Bonnell's Pulse Control System combines the display, handlebar controller and programmable Electronic Finger Lever. Riders can configure the lever for variable regenerative braking, e-clutch control or emergency throttle operation. The system also supports traction control, Wheel Lift Assist, Boost, Walk Mode, Hill Hold, a speed limiter and password-protected parental controls. Three display layouts show live ride and system information, including component temperatures and maintenance data.

Chassis, Suspension and Brakes

The forged-aluminum main frame is paired with a forged and hydroformed swingarm and removable aluminum subframe. Fully adjustable Sirris F43 forks and an R46 rear shock provide 9.6 inches (245 mm) of travel at both ends. Bonnell forged calipers use dual 22 mm pistons with a 240 mm front rotor and 220 mm rear rotor.

Bonnell 805 RX Specifications

Peak power	56 hp (42 kW)
Rear-wheel torque	805 Nm (594 lb-ft)
Maximum motor speed	12,000 rpm
Top speed	80+ mph (130+ km/h), manufacturer estimate
Battery	3.9 kWh removable Core battery
Optional battery	4.7 kWh Race battery (coming soon)
Weight	218 lb (99 kg)
Seat height	35 in (895 mm)
Wheelbase	53 in (1,346 mm)
Wheels	21 in front / 18 in rear
Suspension	Sirris F43 fork and R46 shock; 245 mm travel front and rear
Brakes	Bonnell forged dual-piston brakes; 240 mm front / 220 mm rear rotors
Primary drive	Belt drive standard; optional 520 chain conversion kit
Ride modes	5 customizable modes plus reverse

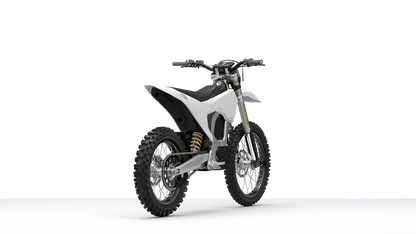

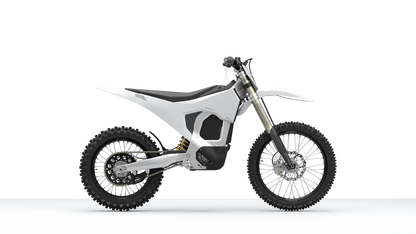

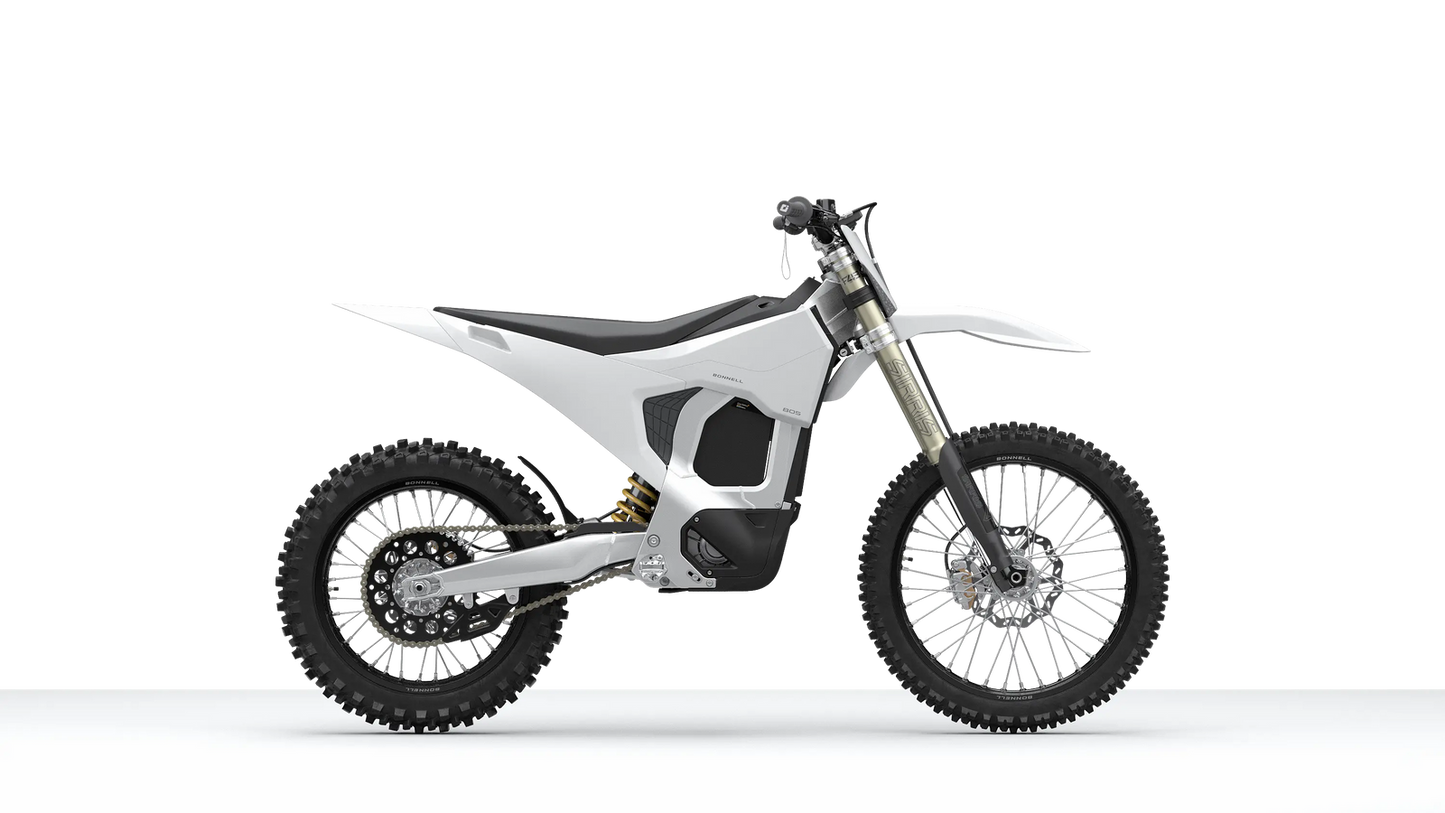

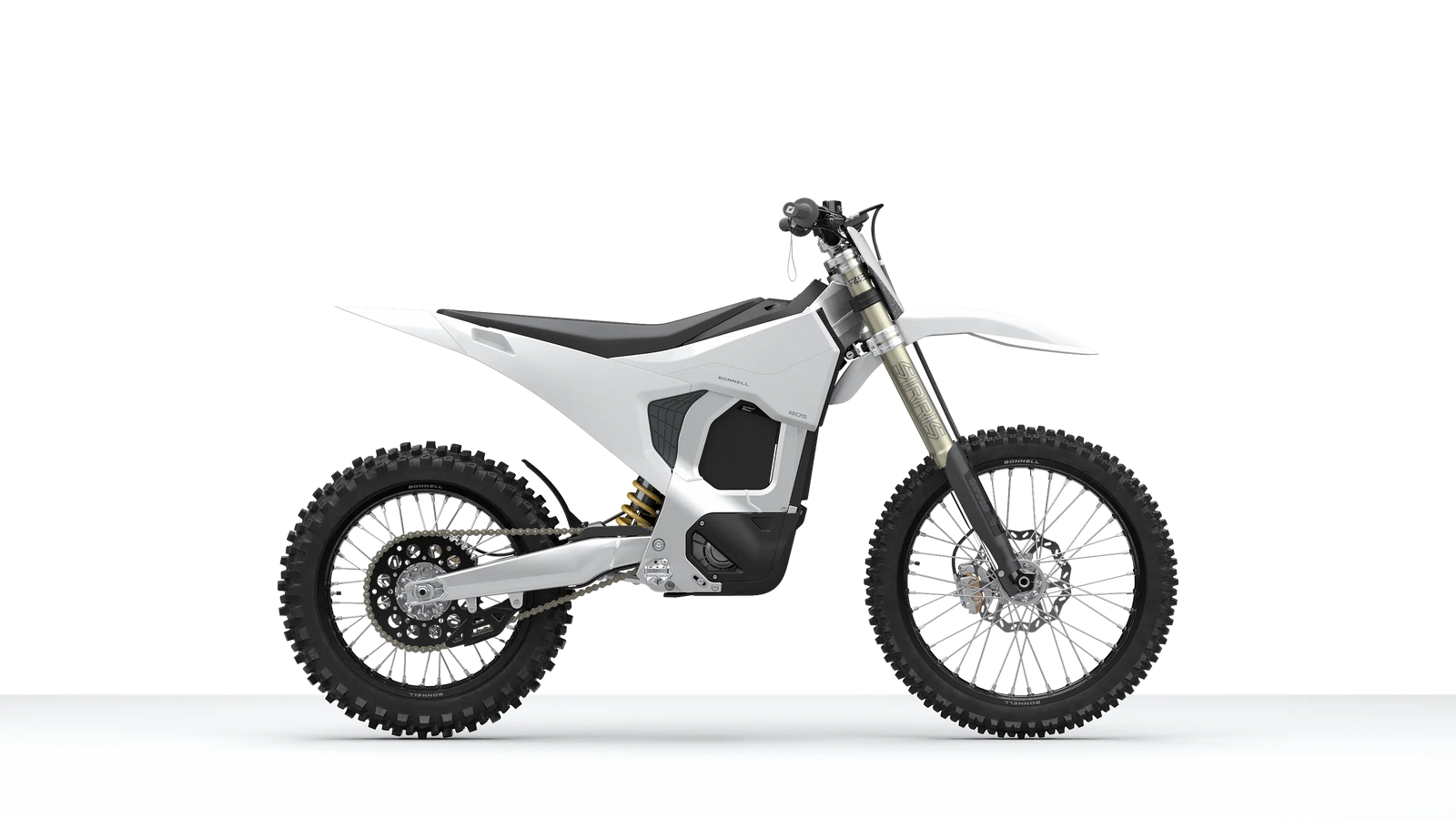

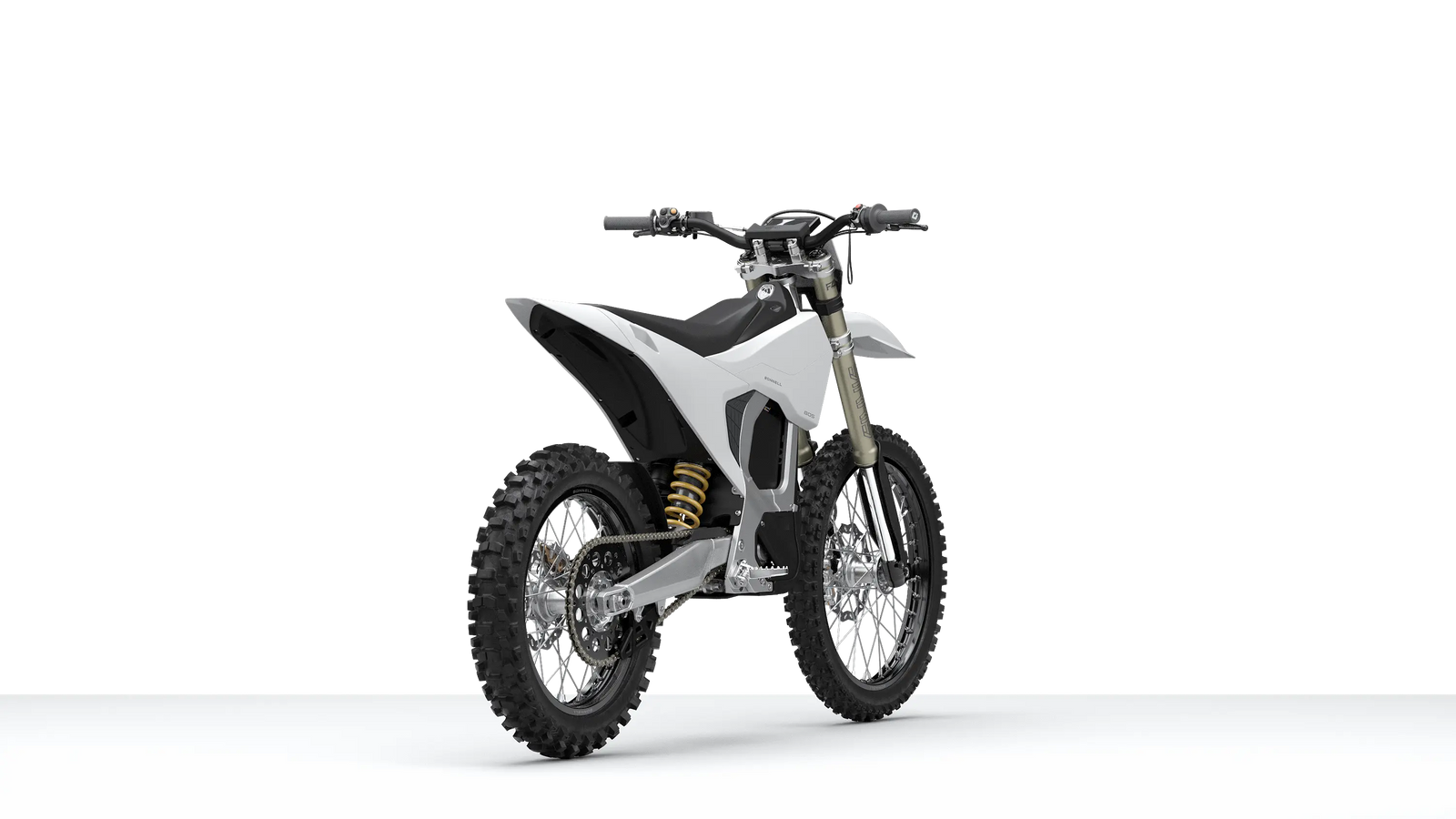

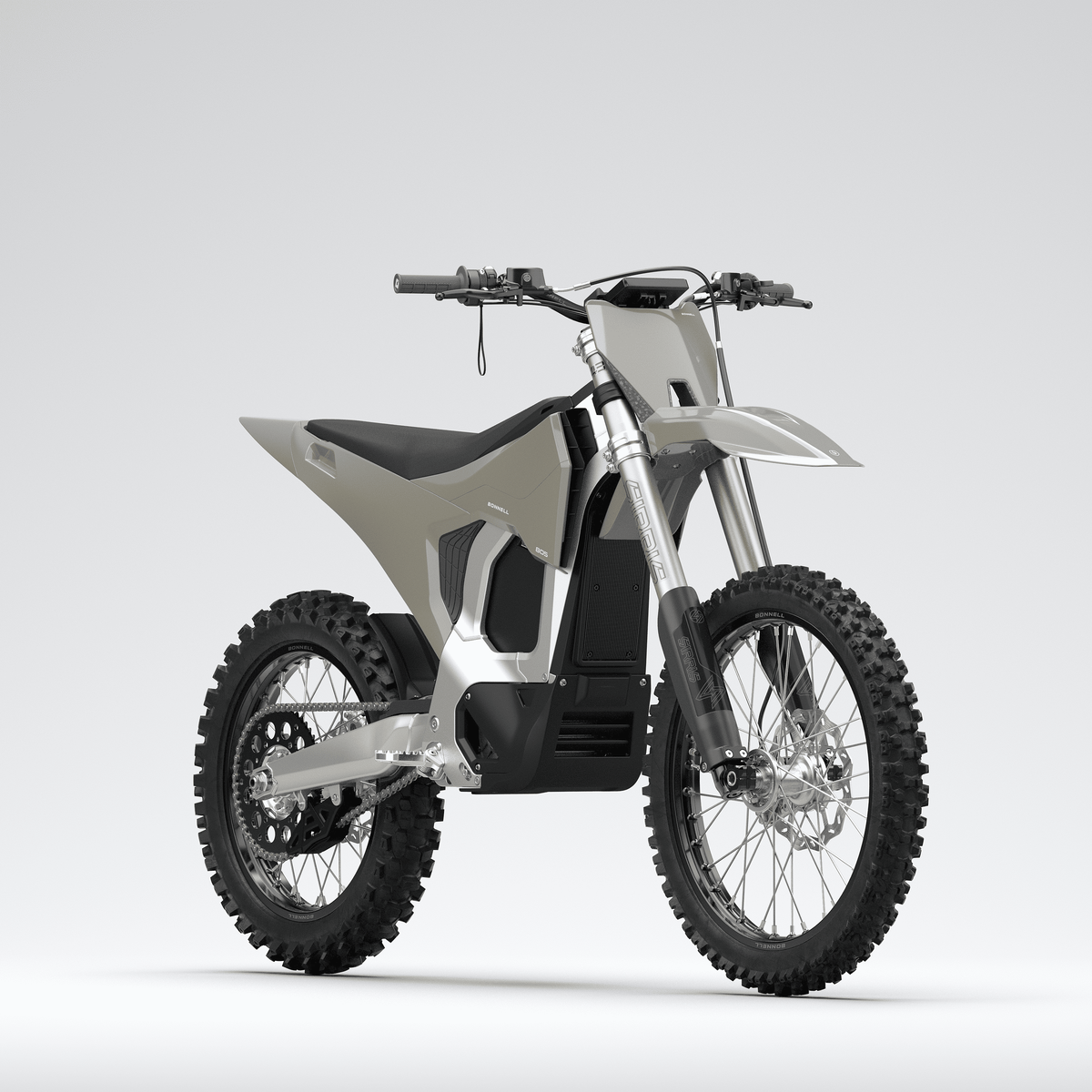

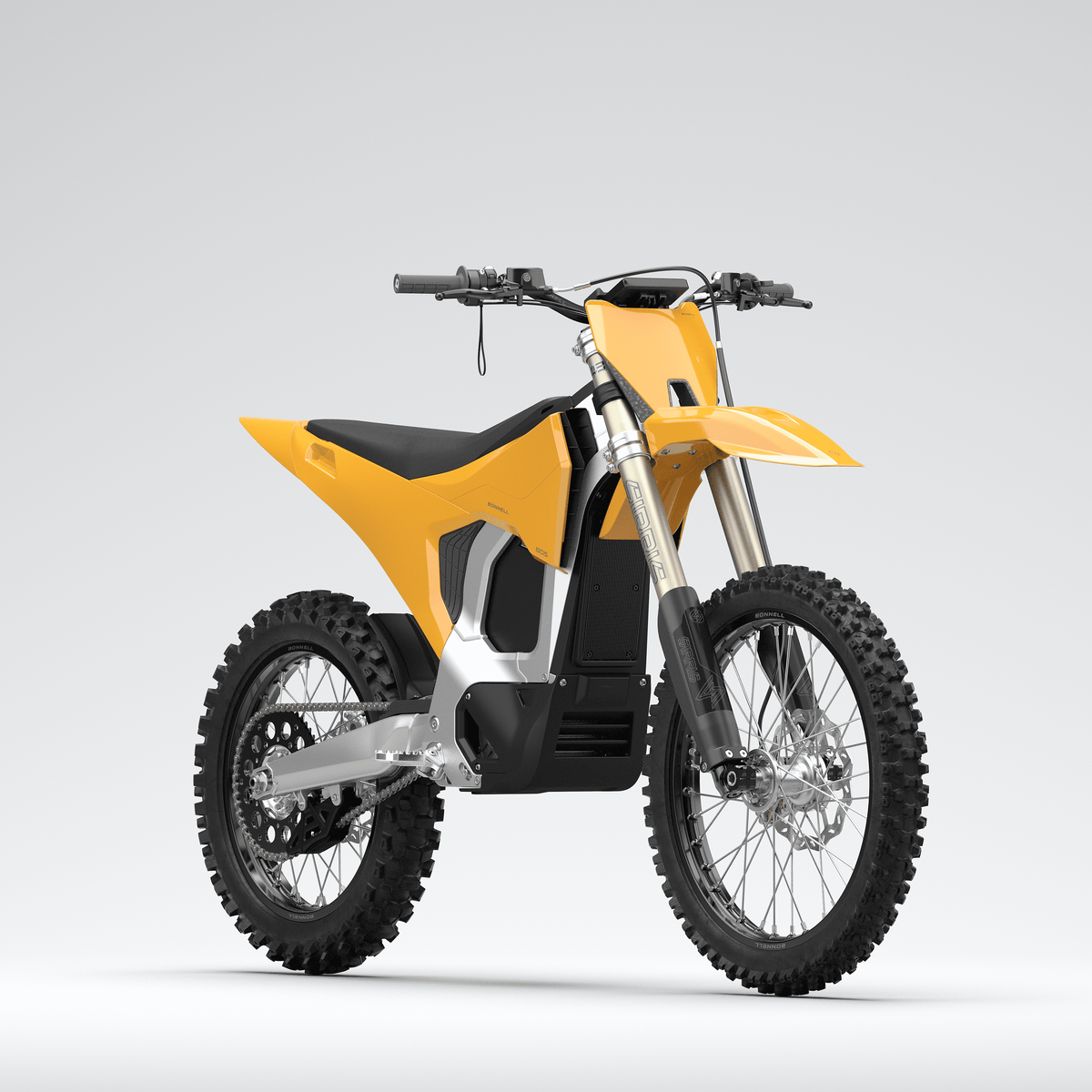

Standard color	Helium White; alternate plastics sold separately

Frequently Asked Questions

Is the Bonnell 805 RX street legal?

No. The Bonnell 805 RX is designed and intended exclusively for off-road use. It is not an electric bicycle and should not be operated on public roads unless applicable law specifically permits it.

What battery comes with the Bonnell 805 RX?

The bike comes standard with a removable 3.9 kWh Core battery. Bonnell has also announced a 4.7 kWh Race battery as a future optional accessory.

How fast is the Bonnell 805 RX?

Bonnell estimates a top speed above 80 mph. Actual speed and range vary with rider weight, terrain, tire choice, temperature, battery configuration and state of charge.

How long does the Bonnell 805 RX take to charge?

Bonnell rates the included 1,500W charger for an approximately two-hour full charge. The optional 2,500W charger is rated for a sub-one-hour charge on 220V power.

Does the Bonnell 805 RX use a chain or belt?

The production bike comes with a quiet, low-maintenance belt drive. Bonnell offers an optional 520 chain conversion kit.

What comes with the bike?

The 805 RX includes the 3.9 kWh Core battery, a 1,500W 110V/220V charger and a foam-lined workshop toolkit. Contact Radmoto to confirm current allocation, delivery timing and available accessories before ordering.

Specifications and features are preliminary and may change without notice. Performance figures are manufacturer estimates under controlled conditions. Actual results will vary. Always wear appropriate protective equipment and follow all applicable laws.
