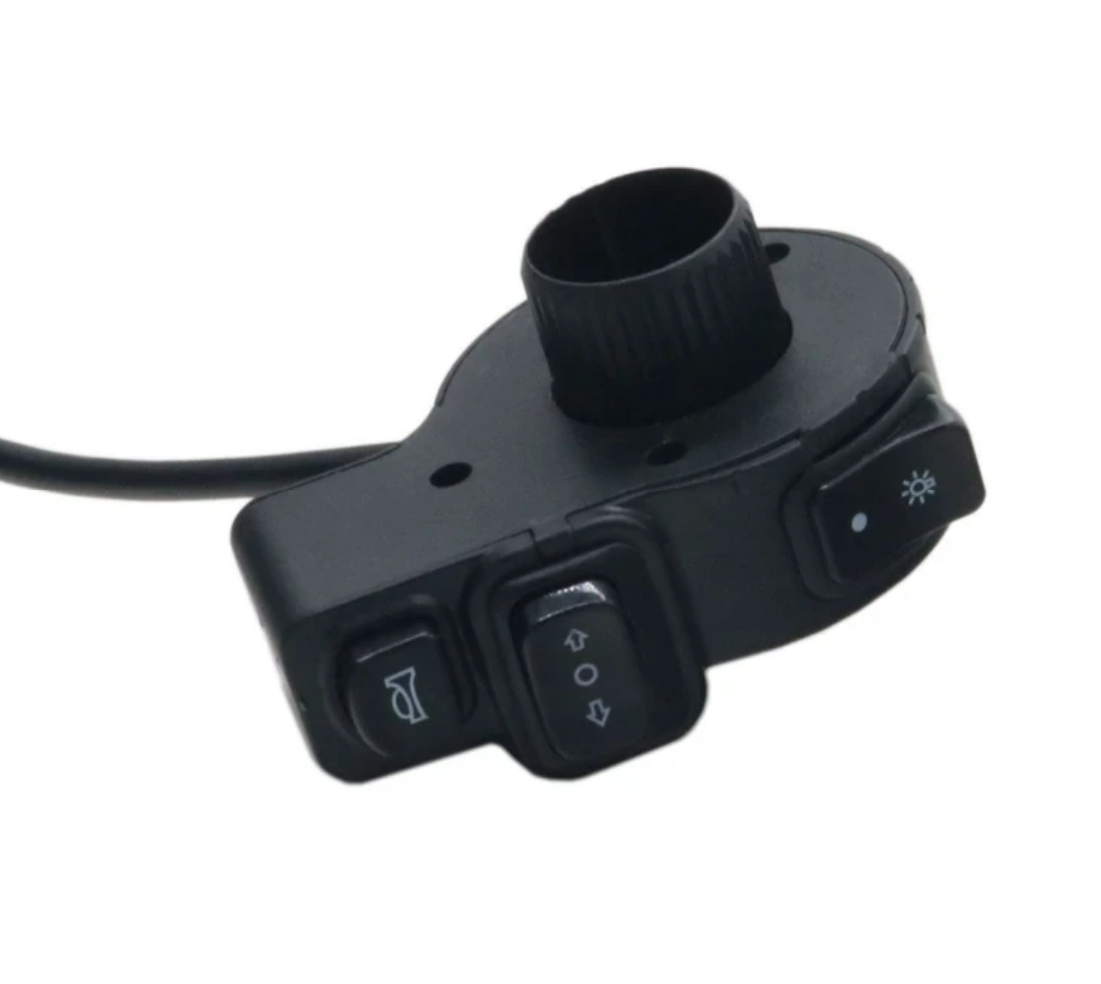

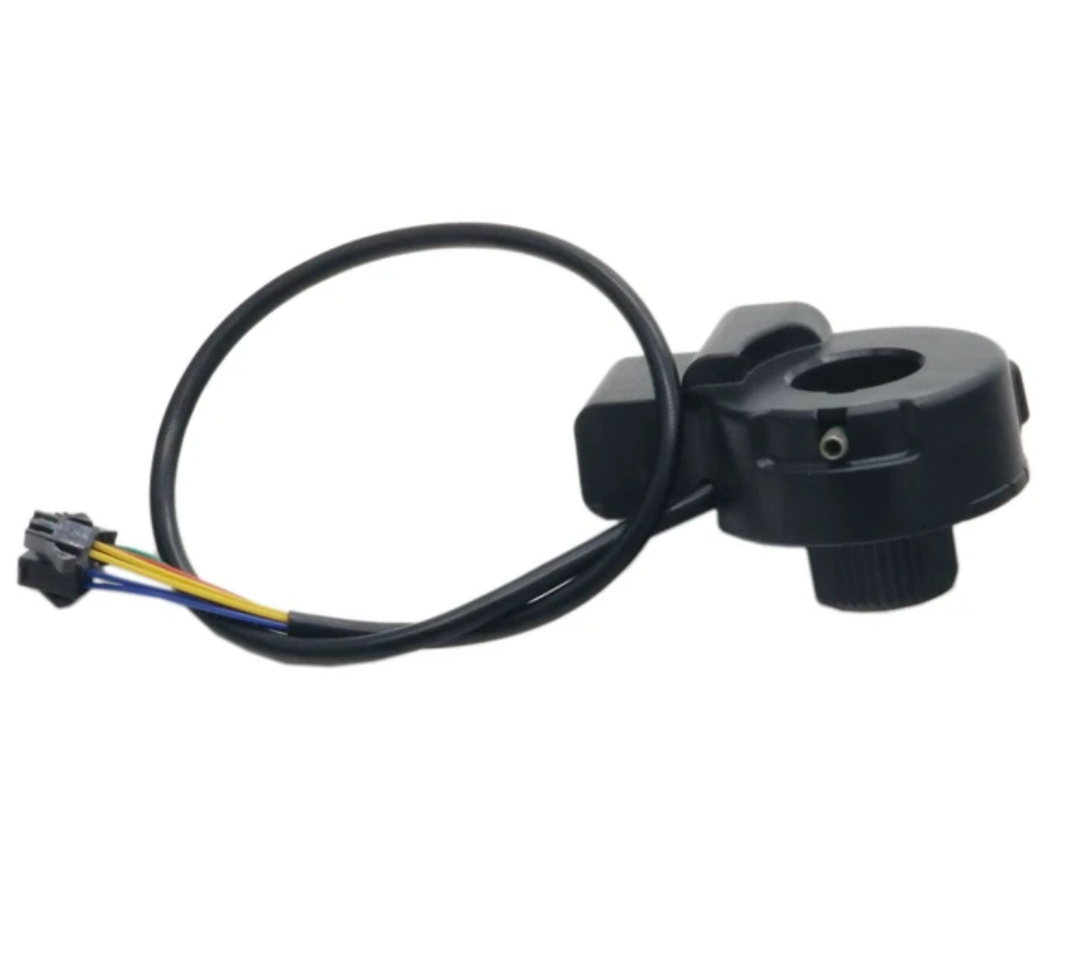

ONYX LEFT SIDE SWITCH CONTROLS - aftermarket w/o USB

ONYX LEFT SIDE SWITCH CONTROLS - aftermarket w/o USB

Regular price $40.00 USD
Regular price Sale price $40.00 USD
Sale Sold out
Tax included.

Turn signal, headlight, horn controls, but NO USB charging port. For RCR and CTY2. Connectors sometimes come different, if you're ever unsure just remove the three screws on the side and see which wire goes to which button. We've tried to capture all the variations below.


22mm Motorcycle Switches Motorbike Horn Button Turn Signal Electric Fog Lamp Light Start Handlebar Controller Switch

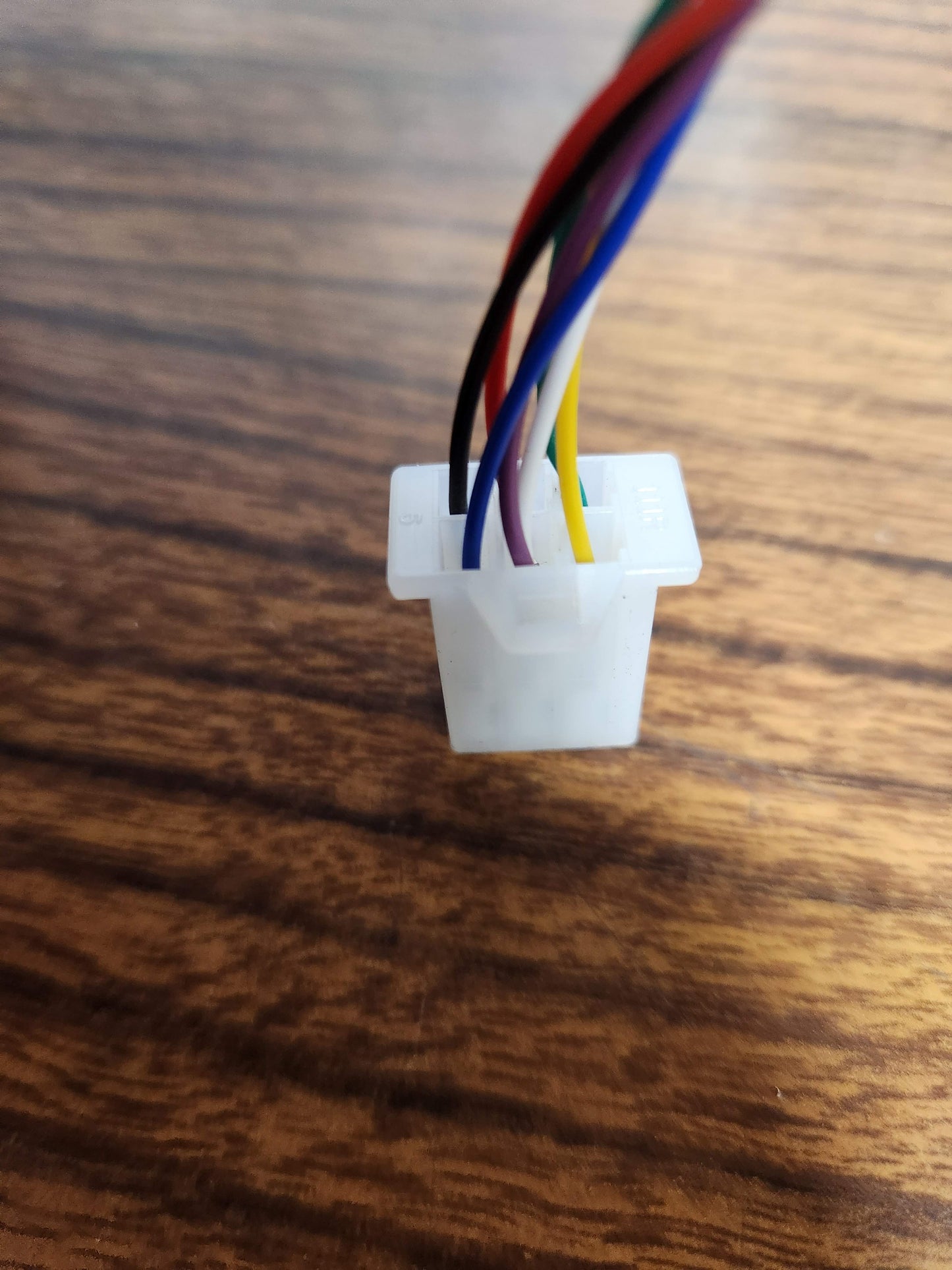

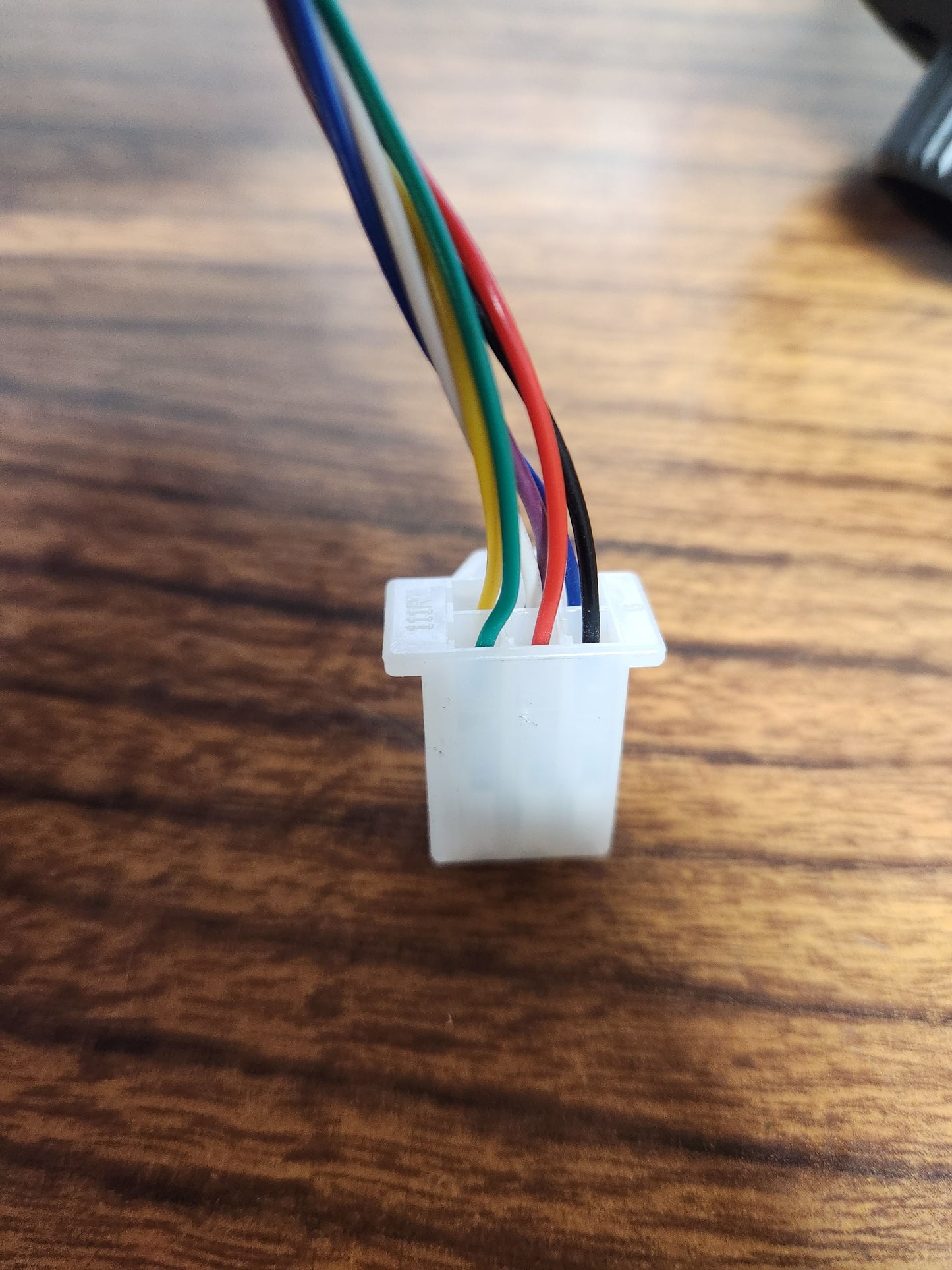

Aftermarket Wire Colors V1 - 1 plug:

  • Black -right turn
  • Red - ground for turn (left & right)
  • green- left turn
  • yellow - horn
  • white/purple - ground for headlight & horn
  • blue - headlight

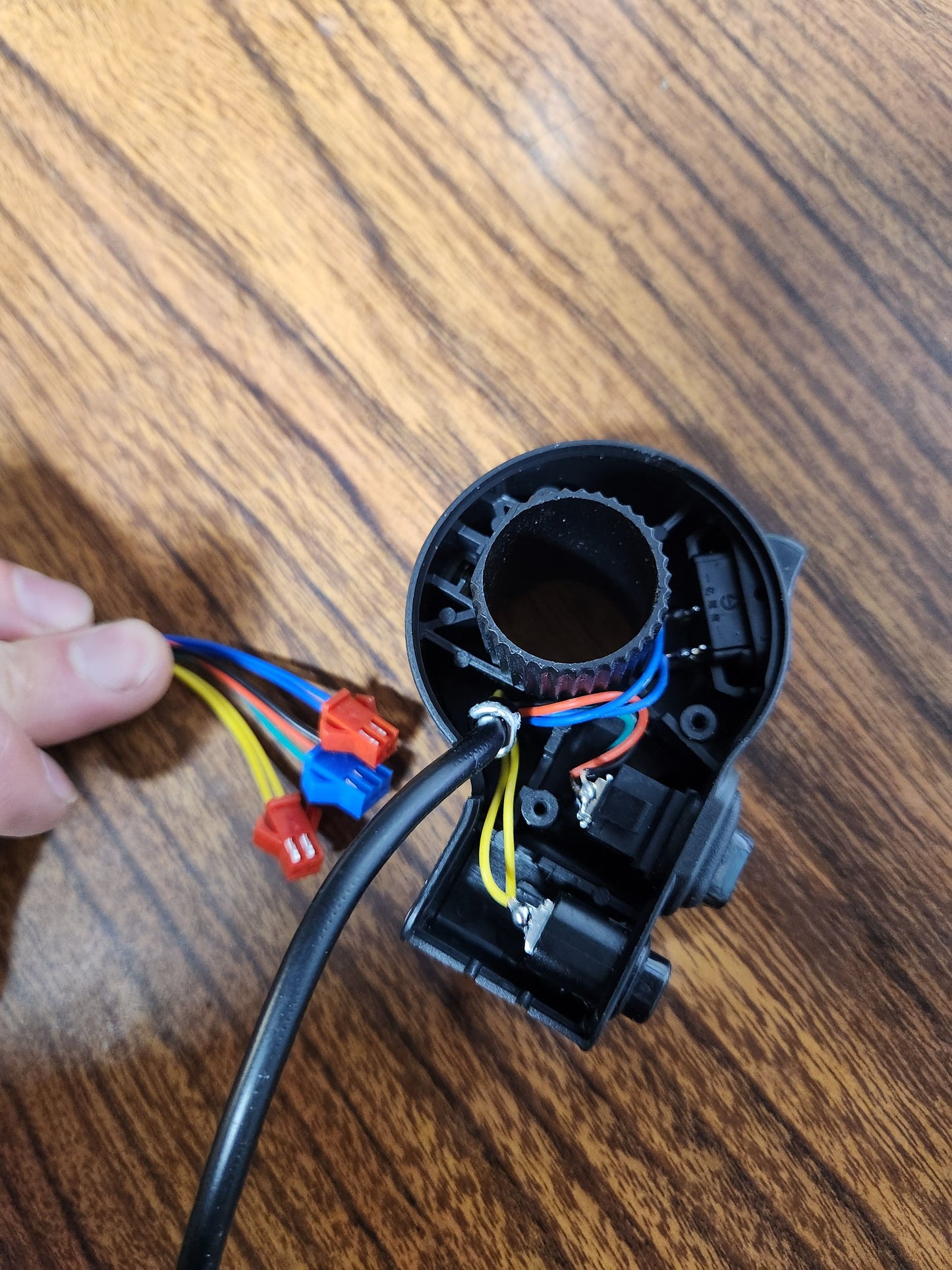

Aftermarket Wire Colors V2 - 3 plugs:

  • horn - Yellow
  • high beam - blue
  • Turn signals - green (left), red (ground), black (right)

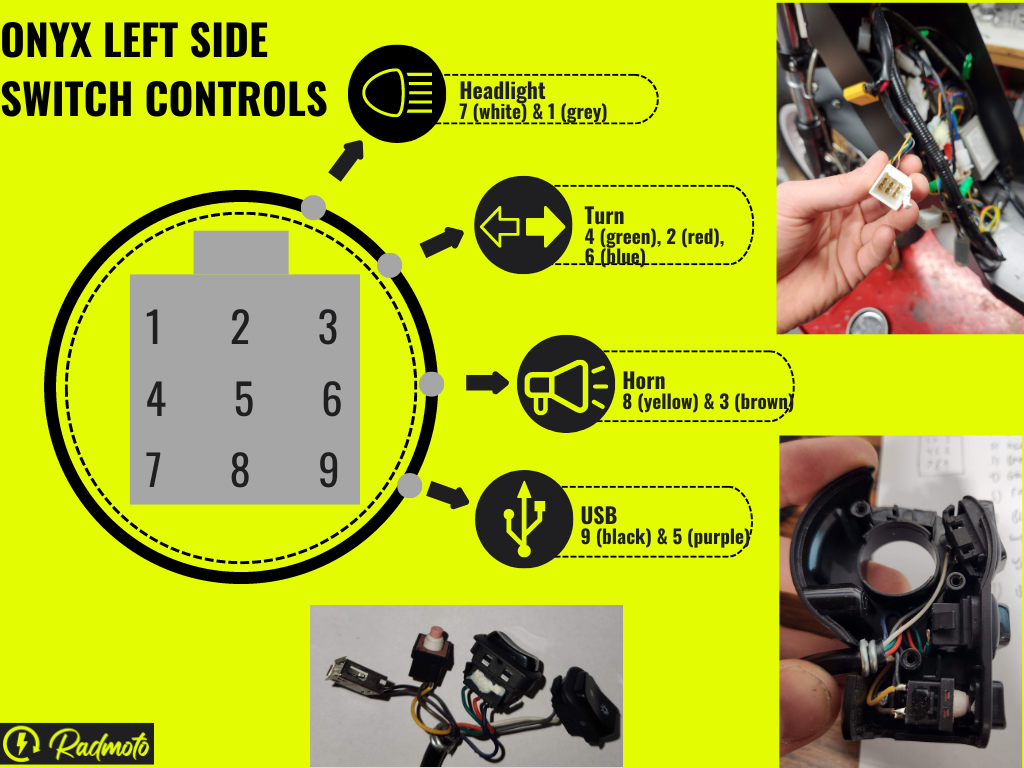

Stock Wire Colors - one plug:

  • White & Grey = Headlight
  • Yellow & Brown = Horn
  • Green & Red & Bue = Turn signals
  • Black & Purple = USB

Specifications:
Material: ABS Plastic
Color: Black
Weight: 54g

Work on any 12v DC electrical system.

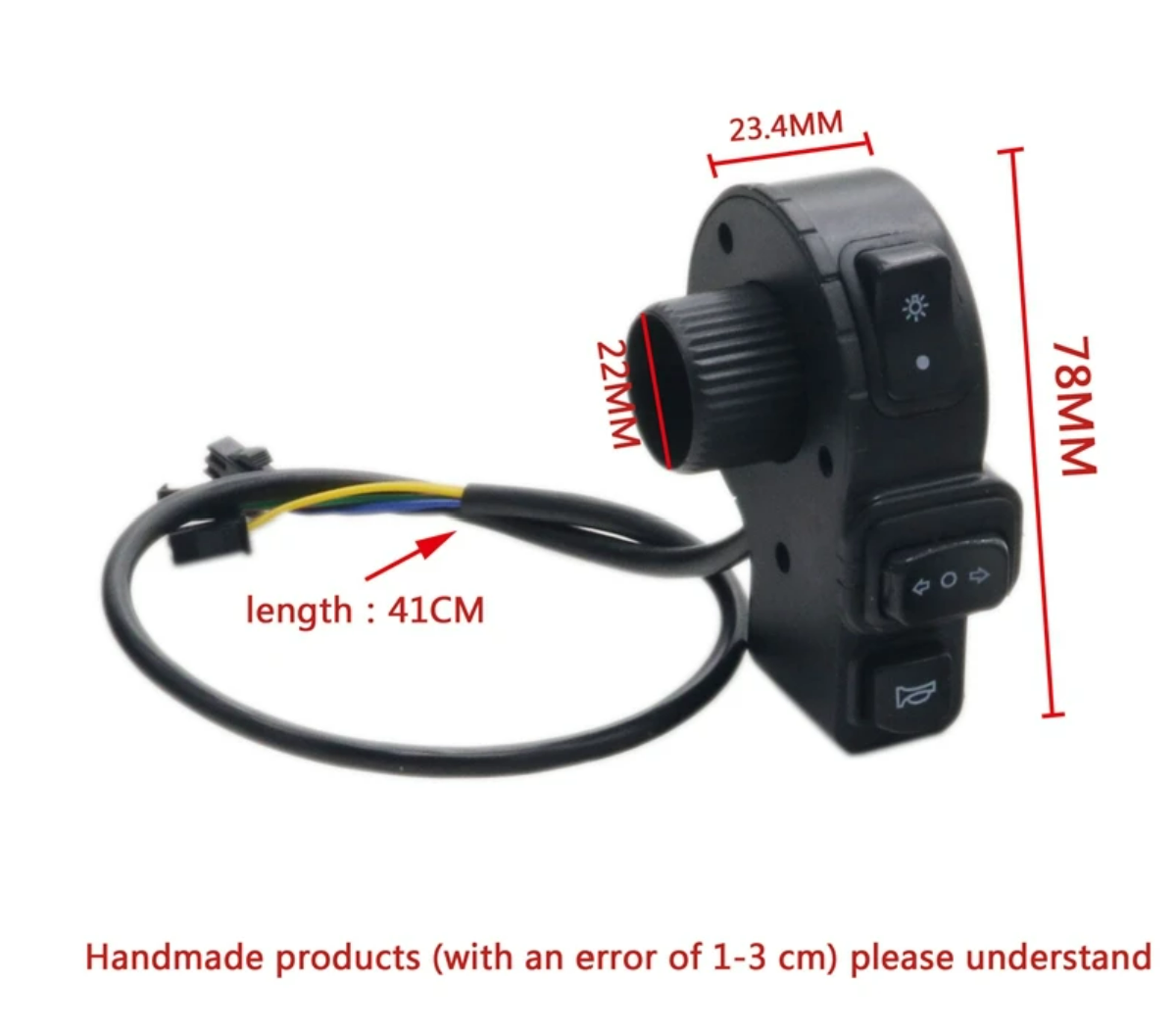

Size:Please check the detail in the photo.

Functions:
Horn Button /Turn Signal/Fog Lamp Light Switch
