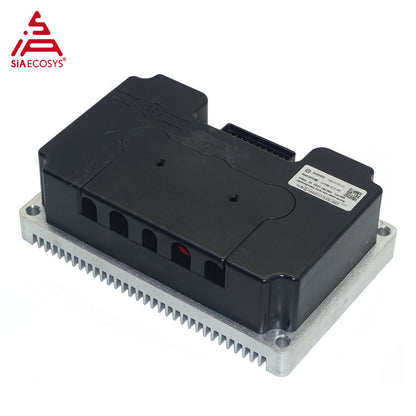

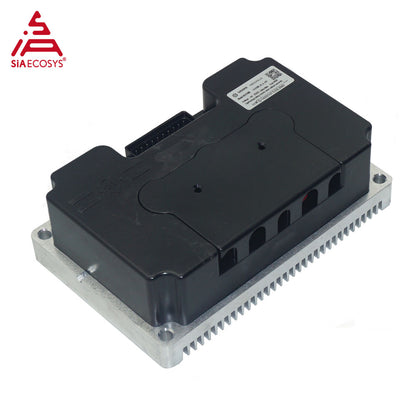

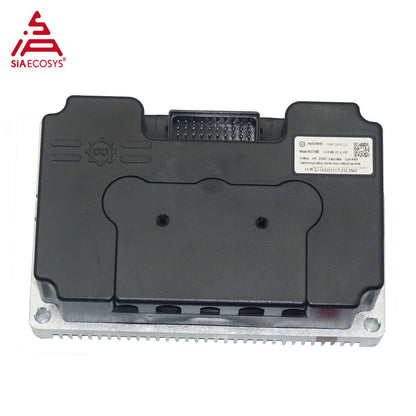

Fardriver ND96680 Sine Wave Controller with Bluetooth
Fardriver ND96680 Sine Wave Controller with Bluetooth
Voltage: 48V - 96V
Battery Current: 350A
Phase Current: 680A
Peak power: 33.8kW (96V x 350A)
Fardriver Controller ND96680 Sine Wave Controller High Power Electric Motorcycle Controller with bluetooth
Combo:

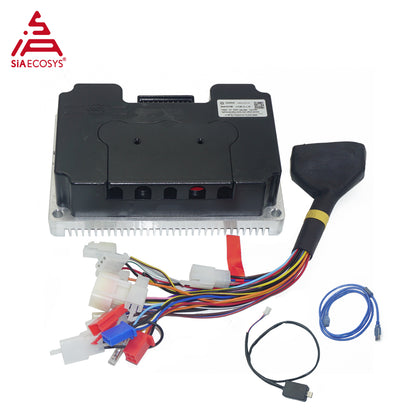

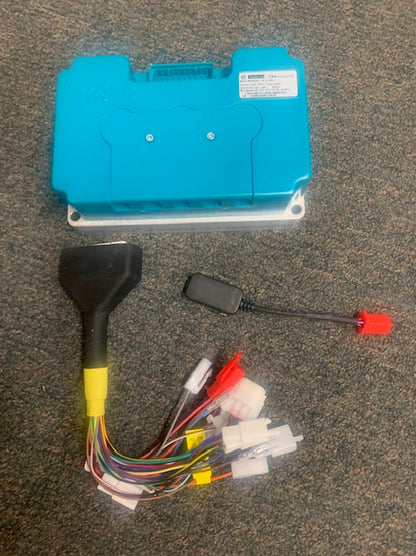

1.1pcs X ND96680 sine wave controller
2.1pcs X Bluetooth adaptor
Key Features
1). All the raw materials are imported, using high-performance Moss tube

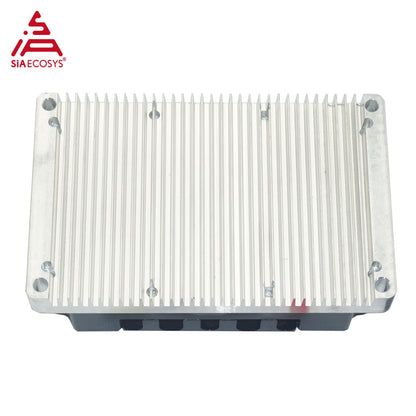

2). With the aluminum substrate scheme, the Moss tube is laid on the aluminum substrate and then placed on the PCB board
3). Small in size
4). High efficiency, low temperature rise, small running current
5). With self-learning function, excellent commonality
6). The app compatible with Android and Apple
7). With flux weakening function.(The product does not contain magnetism)
Product Description

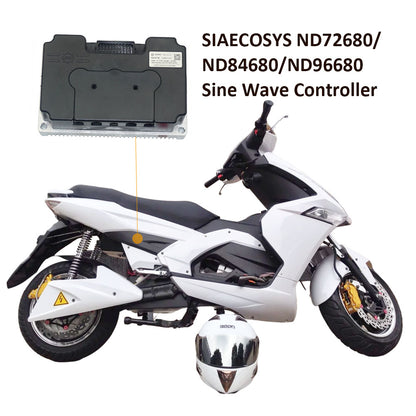

ND72680/ND84680/ ND96680 are sine wave controller with waterproofing grade IP67, suit for 6-8kw motors.
For ND72680, the peak voltage is 88V; For ND84680, the peak voltage is 100V; For ND96680, the peak voltage is 115V.
It’s hall version (as default) which suit with hall motors.
Additional information
Weight | 2.5 kg |
---|---|
Dimensions | 26 × 15 × 18 cm |
