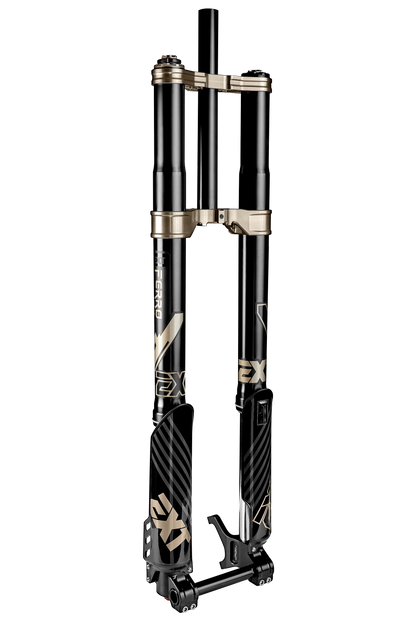

EXT Ferro EMX Fork

The #1 Ultimate Fork for Small eMoto!

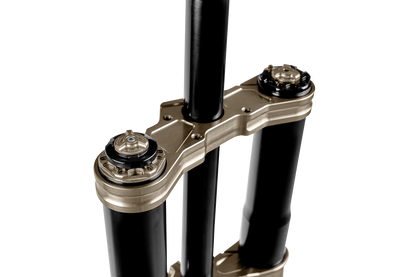

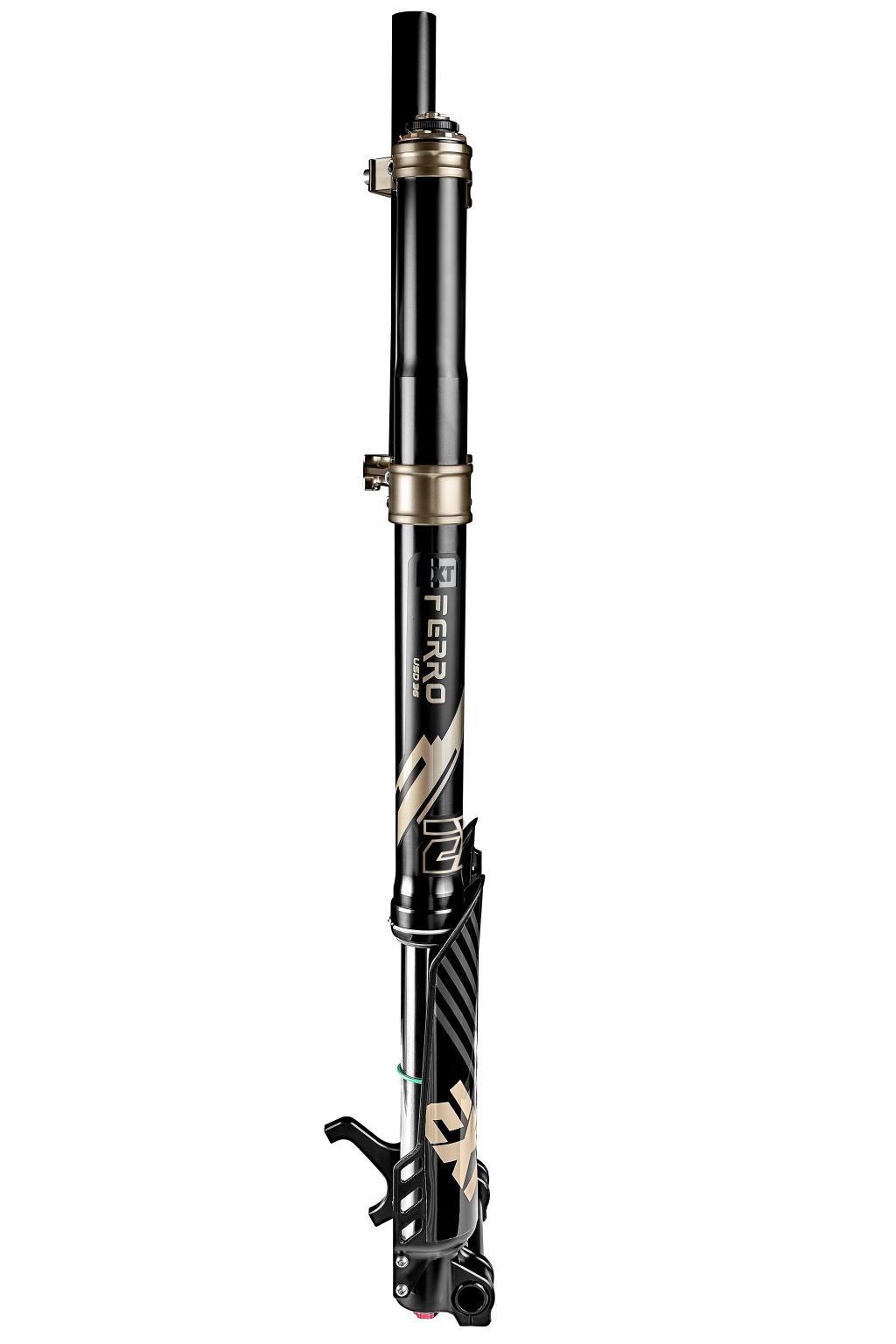

EXT Racing Shox FERRO USD 36 is an upside-down 36mm hard heat-treated chrome moly steel stanchions with Superfinish surface treatment, 7000 series aluminum construction upper legs, and a 205mm travel design with a dedicated triple clamp, developed for minimum friction and high stiffness.

The FERRO USD 36 fork uses the HS3 technology, the unique hybrid air spring system, already been famous with the appreciated MTB fork ERA V2. Two separate positive air chambers work with one high-volume self-equalizing negative air chamber; HS3 is focused on mid-stroke support around the dynamic sag position while offering amazing sensitivity and bottom-out protection.

A high-flow 3-way adjustable hydraulic cartridge is installed inside the fork and, with independent High/Low speed compression and Rebound adjustments, sets a new standard for fork adjustability, allowing each rider to properly adjust the damping forces according to his riding style and weight. The possibilities to tailor the fork to your preferences have become unlimited!

REQUIRED FOR INSTALLATION

1. SS001 Bearing Race
2. Lower Head Tube Bearing (usually 32906)
3. Newer DOT brake systems may require a brake adapter

Features

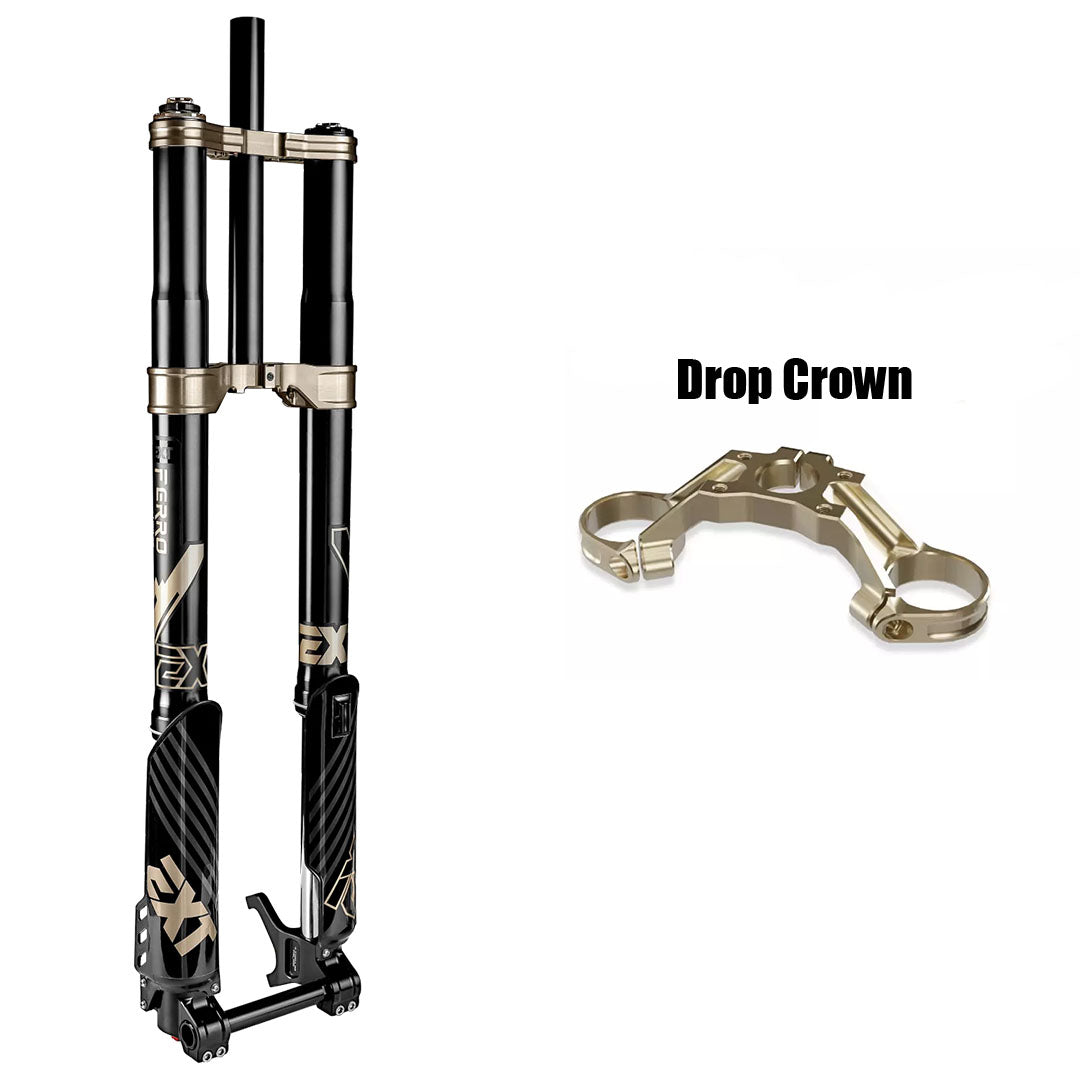

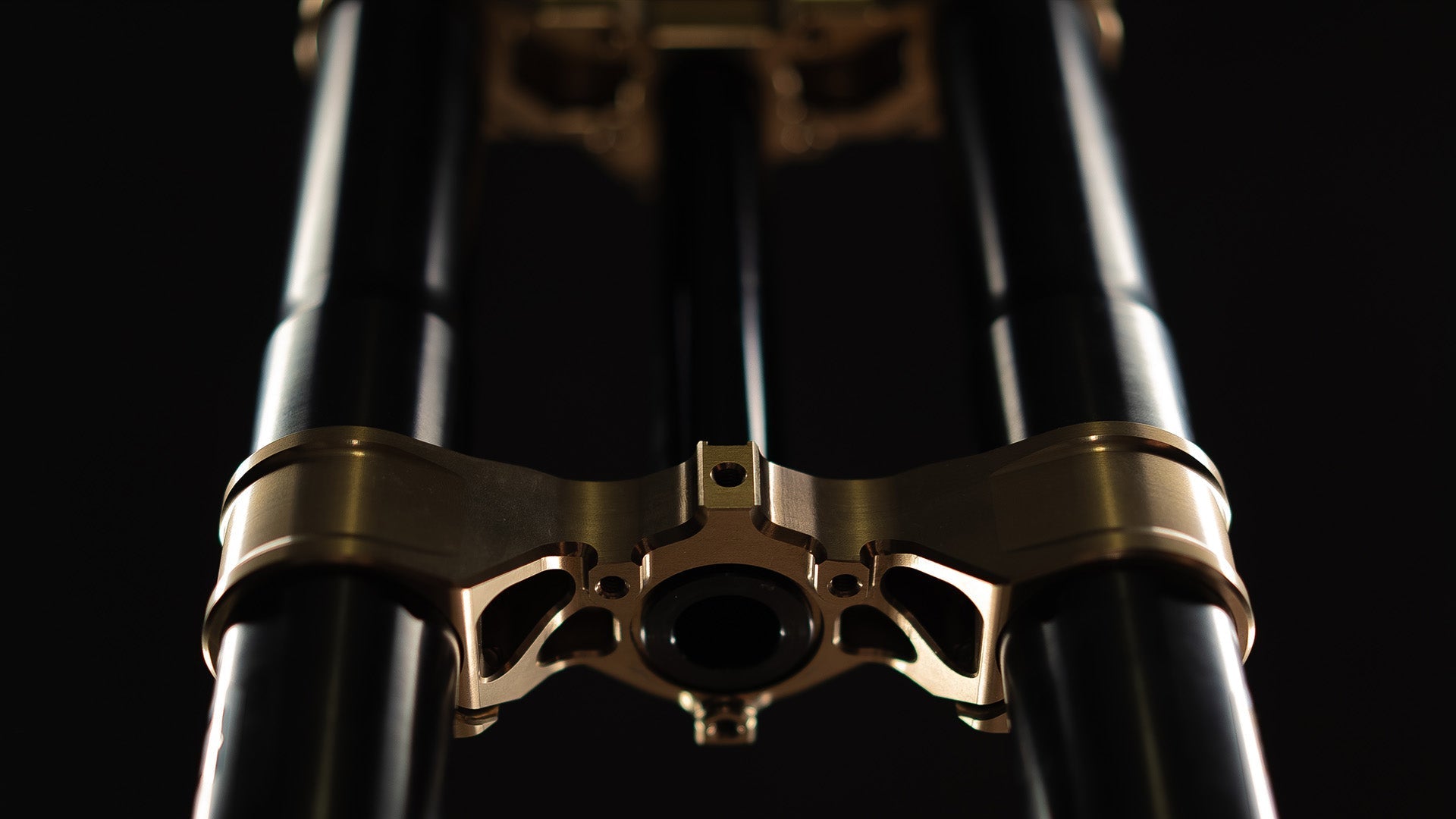

• Drop Crown Version for extra tire clearance

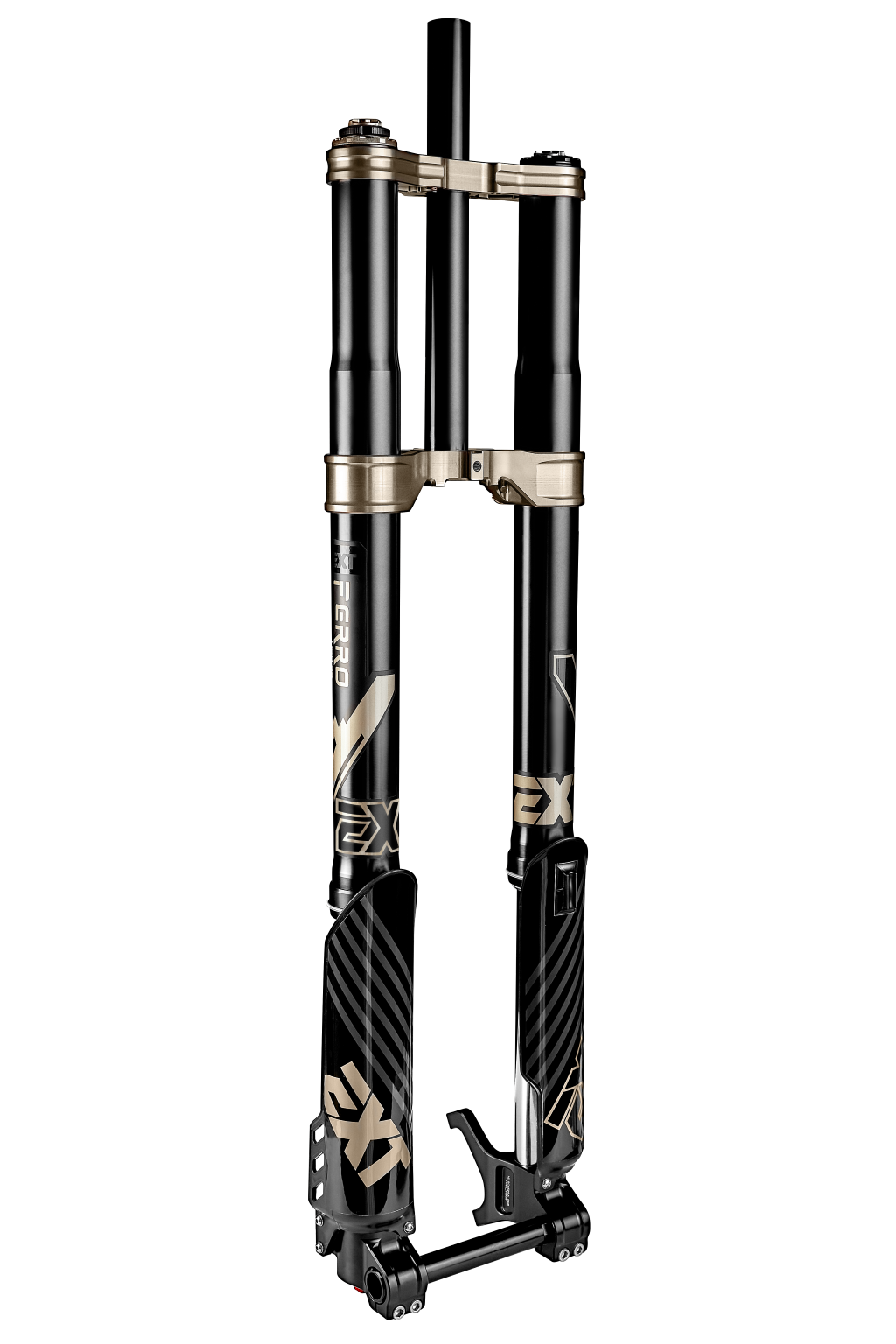

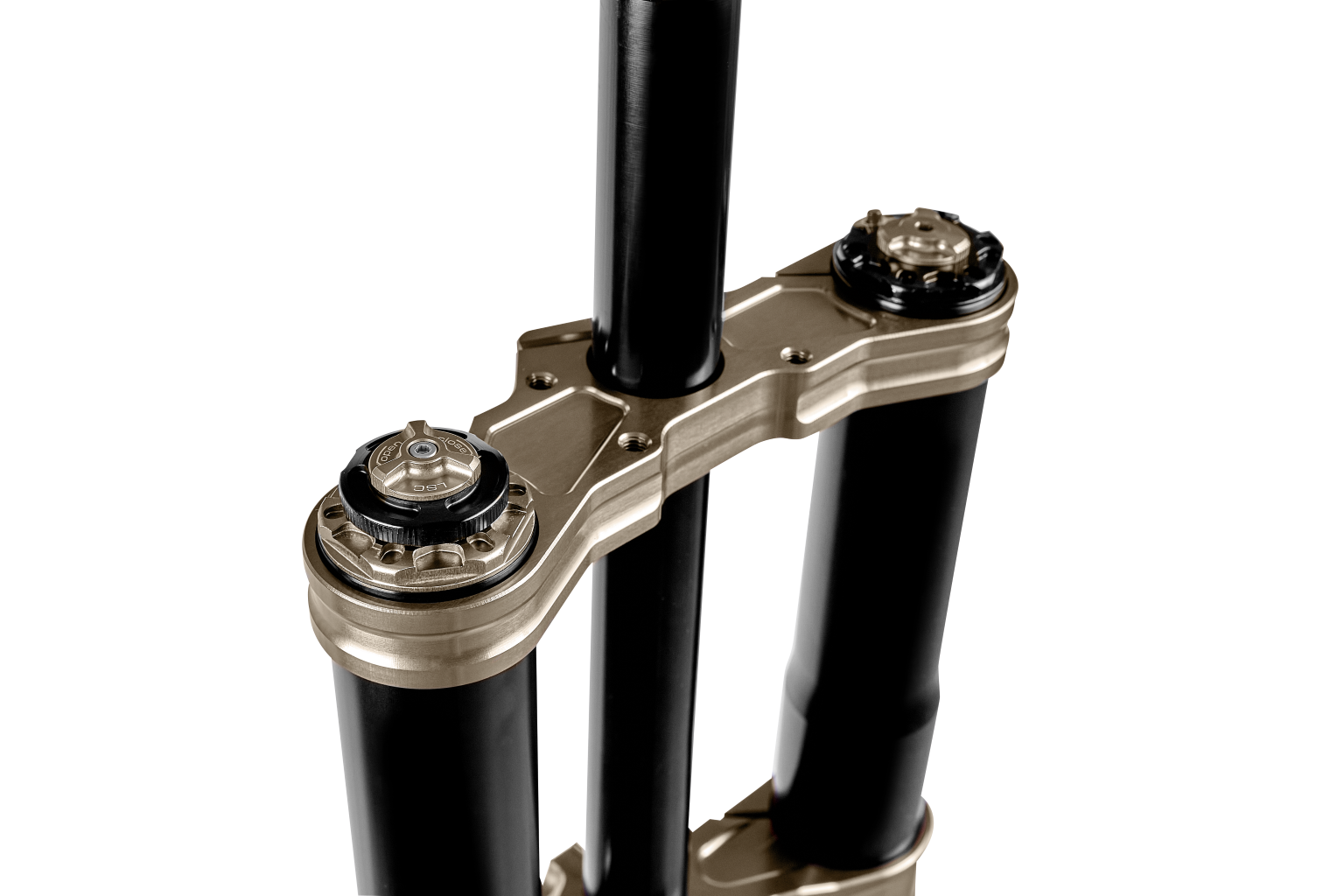

• Robust dual crown inverted MX design (USD)

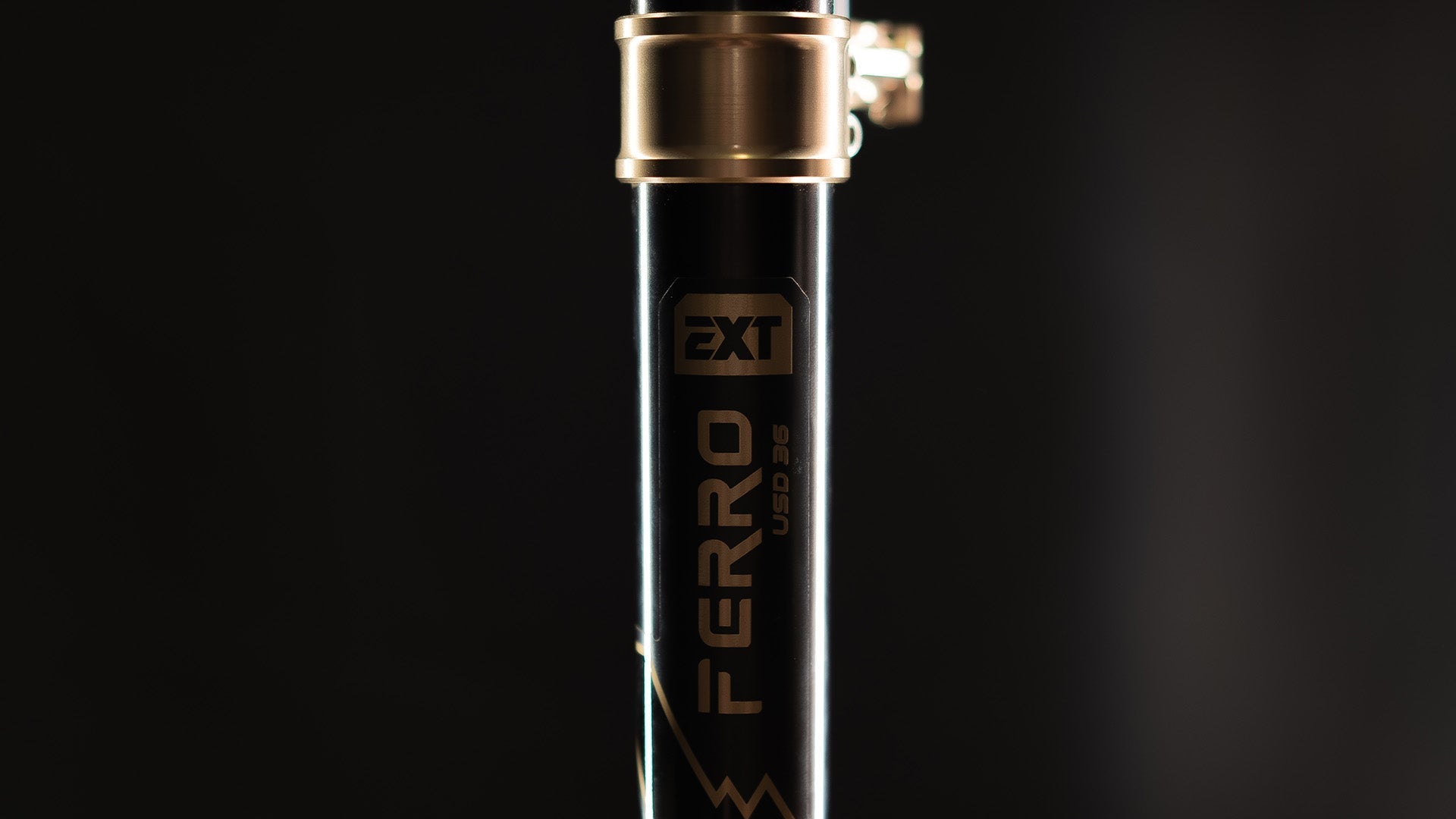

• 36mm Ø hard chromed steel stanchions (heat treated 42CrMo4) with Superfinish surface treatment
• HS3 3- twin positive air system ¬+ 1 large negative self-balancing air chamber, allows for an optimum level of support through all the travel
• High flow 3-way cartridge damper system with independent high & low speed compression plus rebound damping adjustment.
• Superfinish inner tube coating

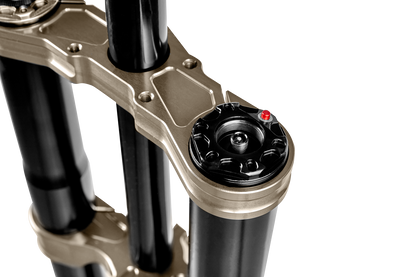

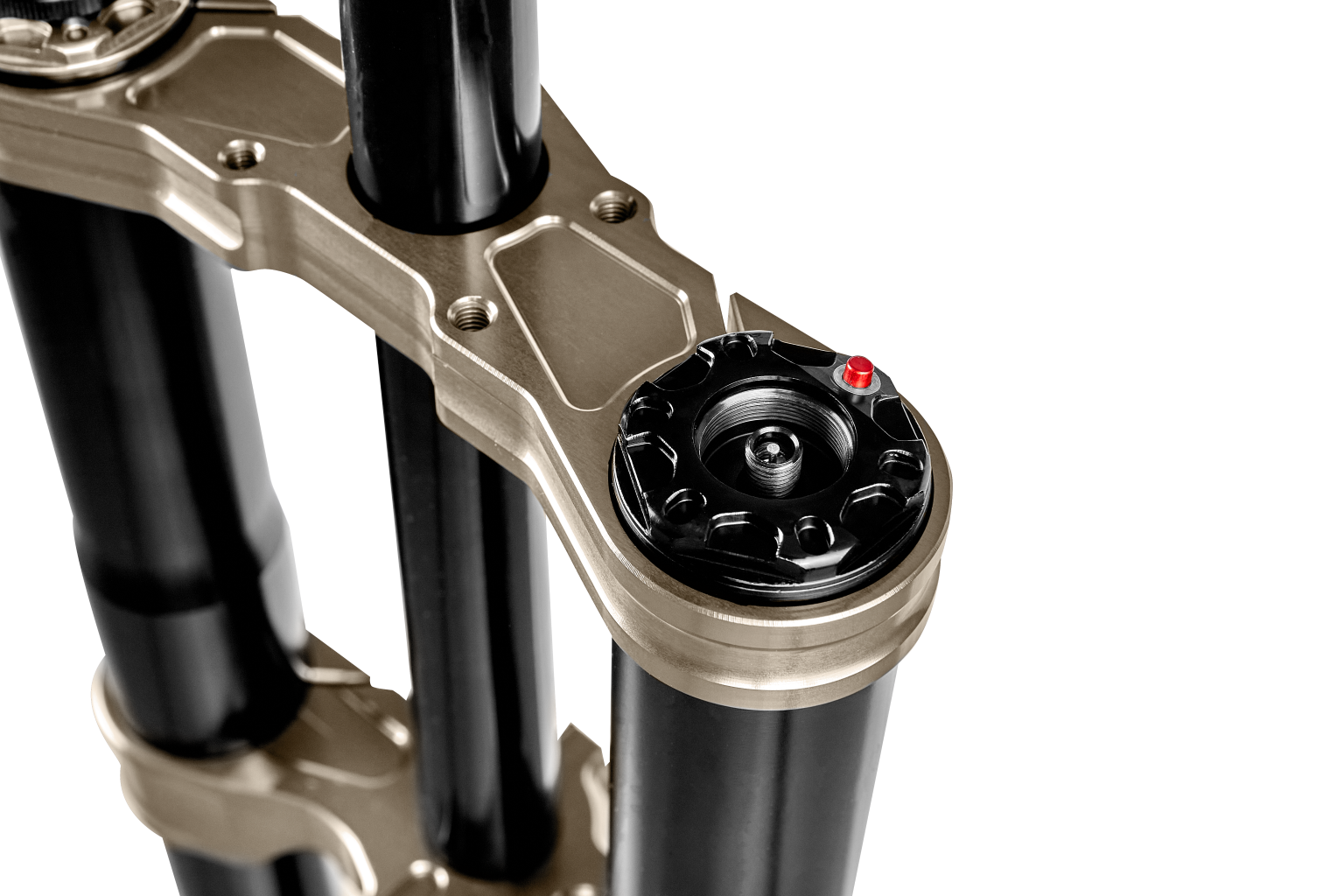

• External pressure air release system on both legs

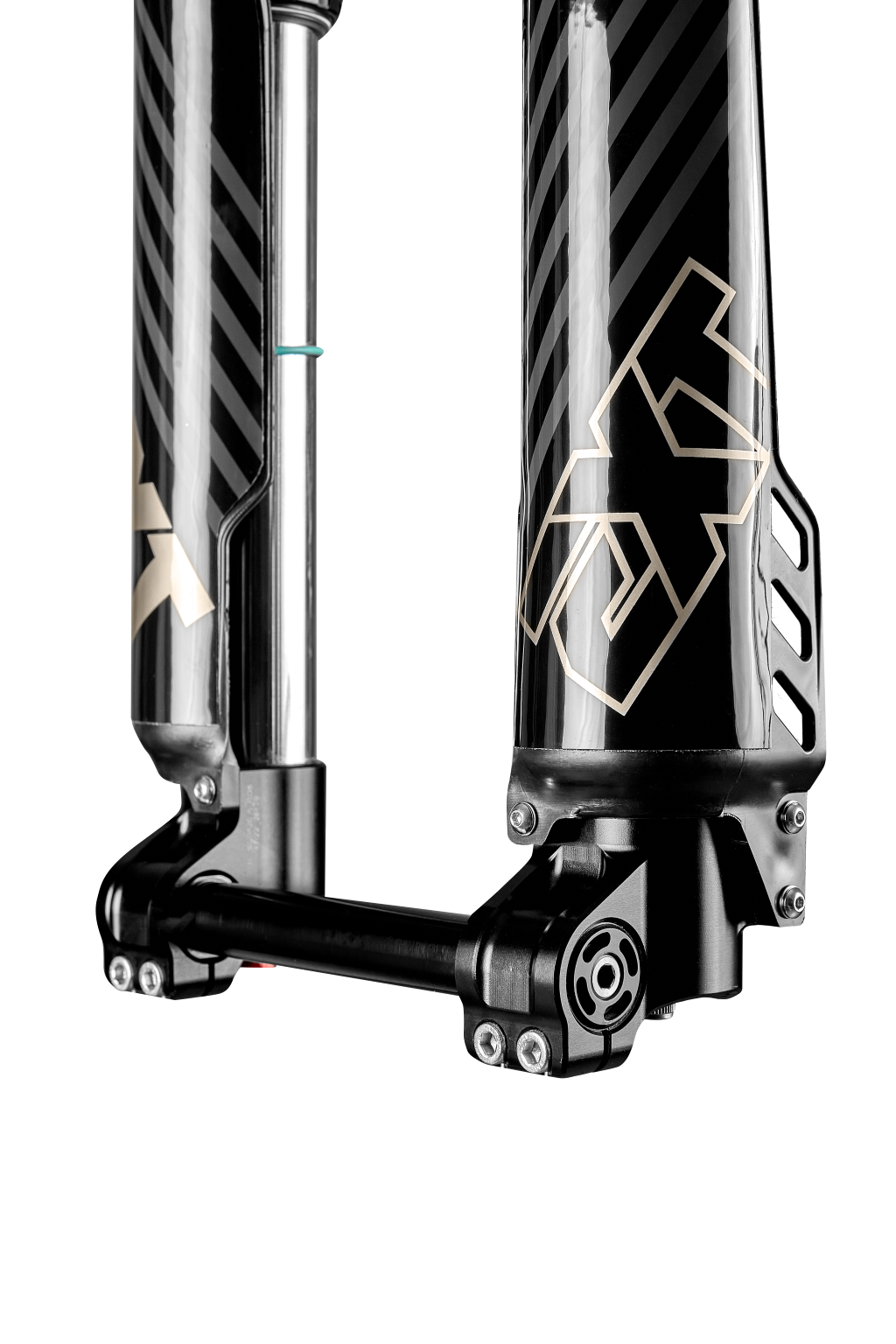

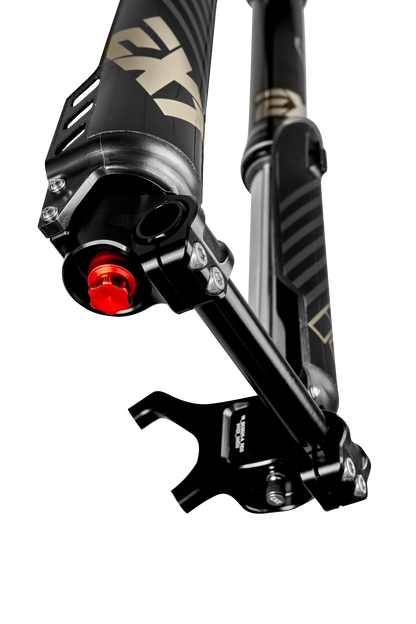

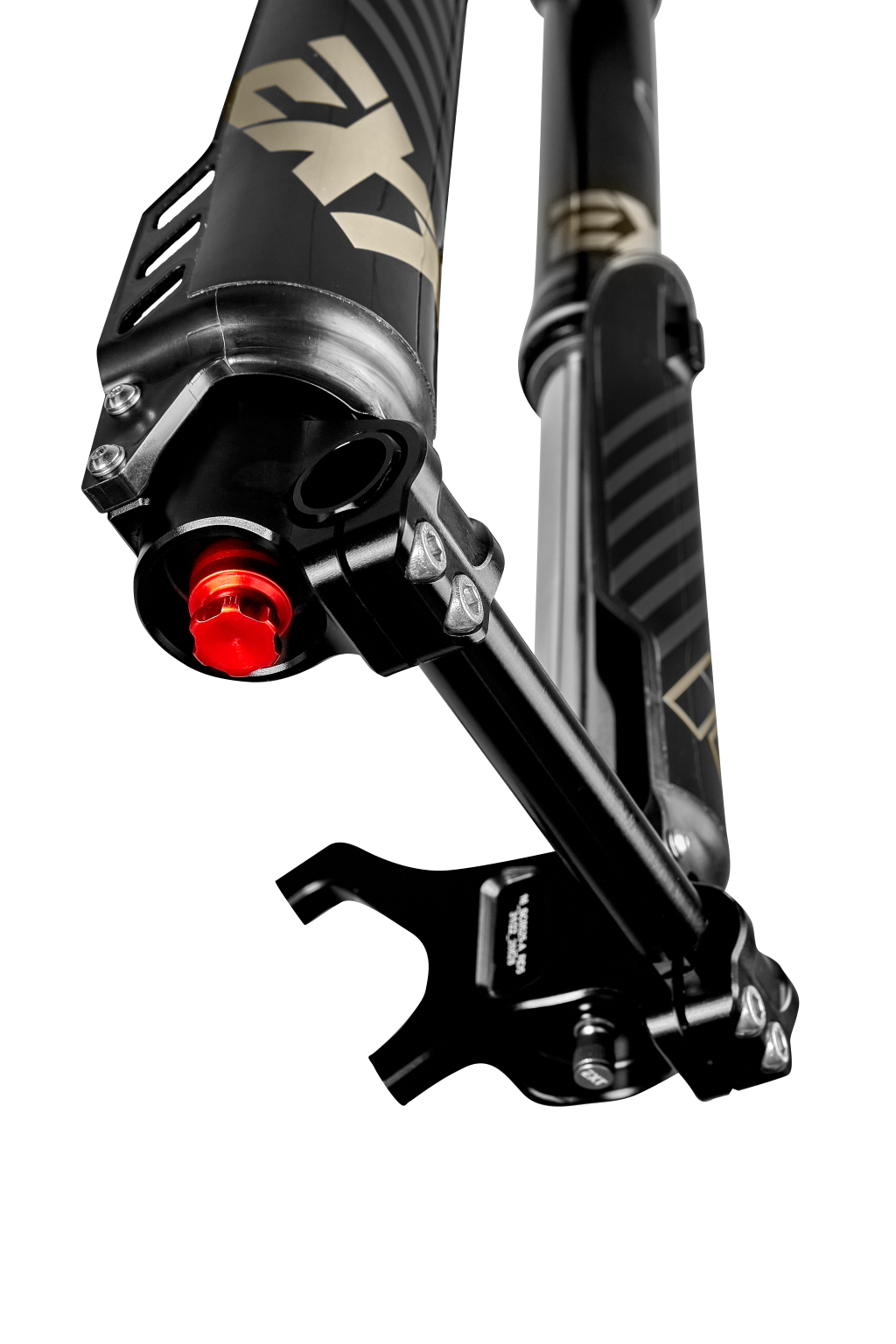

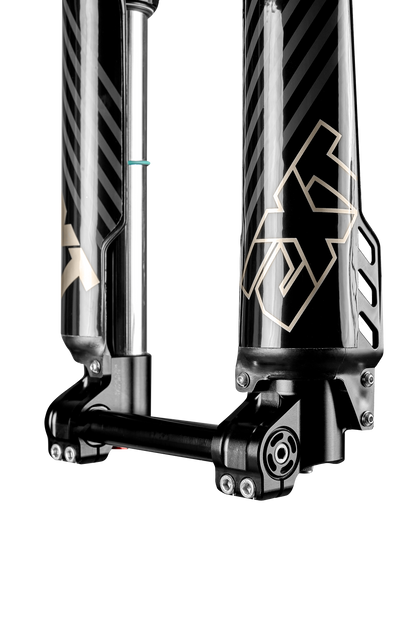

• Twin hexagonal floating axle, boost compatible ∅20mm
• Air spring and cartridge radial guide system with bespoke aeronautical seals (minimize friction on side loads)
• Large piston design for best damping control and separate IFP/coil energized compression valve
• No cavitation and low hysteresis
• Self-hydraulic cartridge bleeding
• Dedicated Mobile Sliding DU guiding system with super-long static overlap (for maximum guidance and best torsional rigidity). (CGB Continuously Guided Bushing system, increase stiffness)
• 205 mm of travel and 44 mm offset
• 200 mm post mount brake
• Weight 4000gr
• Pressure release one-way valves on both legs
• Compatible with stock fender design
• Boost Hub Spacing for more flexibility with aftermarket wheel sets.

EXT Ferro Air Pressure Guide (Surron LBX*):

*The Surron LBX is approximately 150lbs, if you have a heavier bike please add the weight difference to the rider weight to use the chart above.

Bike Compatibility:
