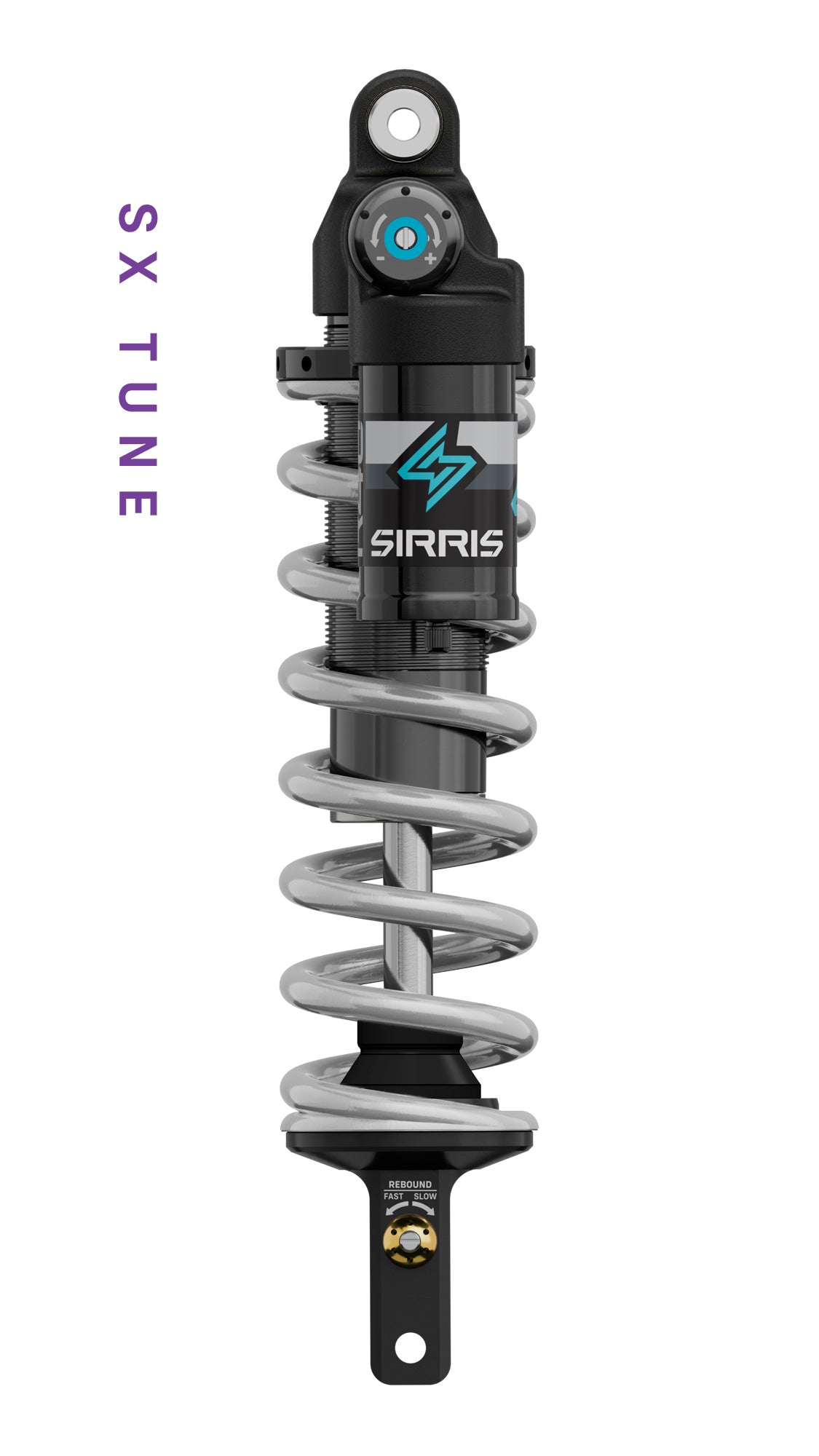

R46 SX Tune | LSC

R46 SX Tune | LSC

$899.00 USD
$899.00 USD
Sale Sold out
Tax included.
Rider Weight Range
Tune
Damper Adjust

Sirris offers two weight ranges to choose from when selecting your SX Tune R46 shock. (Listed weight ranges are rider weight without riding gear on. 15 pounds of riding gear is calculated into the weight ranges)

< 160 lbs (Light = 115 N/mm spring)
> 160 lbs  (Medium = 115 N/mm spring with different clicker settings)

PRODUCT SPECS:

Architecture
Piggyback, steel spring

Stroke
84.2 mm

Length
320 mm

Weight
3.9 lbs / 1.76 kg without spring

Piston
High flow Ø46 mm, CNC 6061 billet aluminum, type 3 hard anodized coating

Piston band
Hard band

Shaft
Ø16 mm OD chrome-plated, induction hardened steel, hollow, Ø 5.5 mm ID

Shock body
Seamless 6061 aluminum, type 3 hard anodized coating, ACME thread

Spring retainer
Seamless 6061 aluminum, type 3 hard anodized coating, ACME thread, with locking feature, manual adjust

Bottom out
SX firm MCU bumper

Top out
Rubber bumper

Damping
Tunable compression and rebound

Reservoir
Pressurized with floating piston

Adjusters
External compression and rebound adjustment

Seals
HNBR
