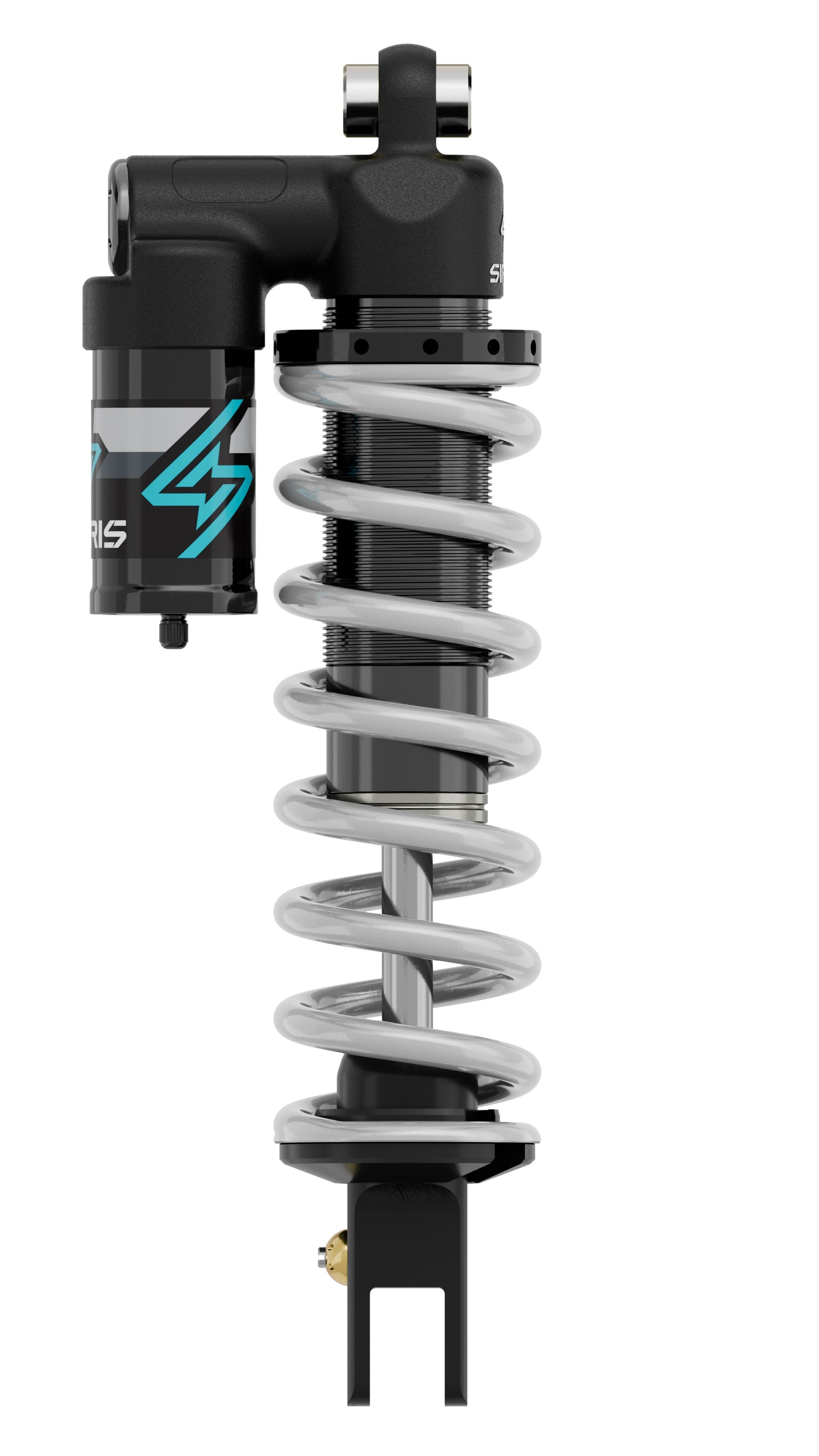

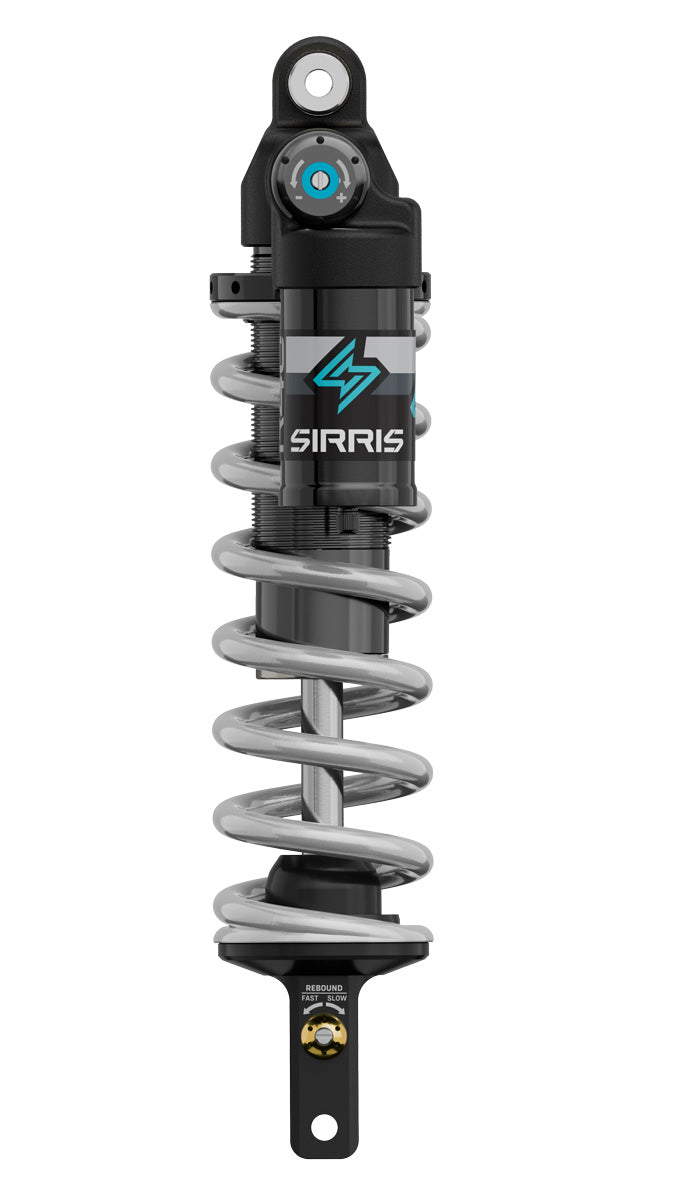

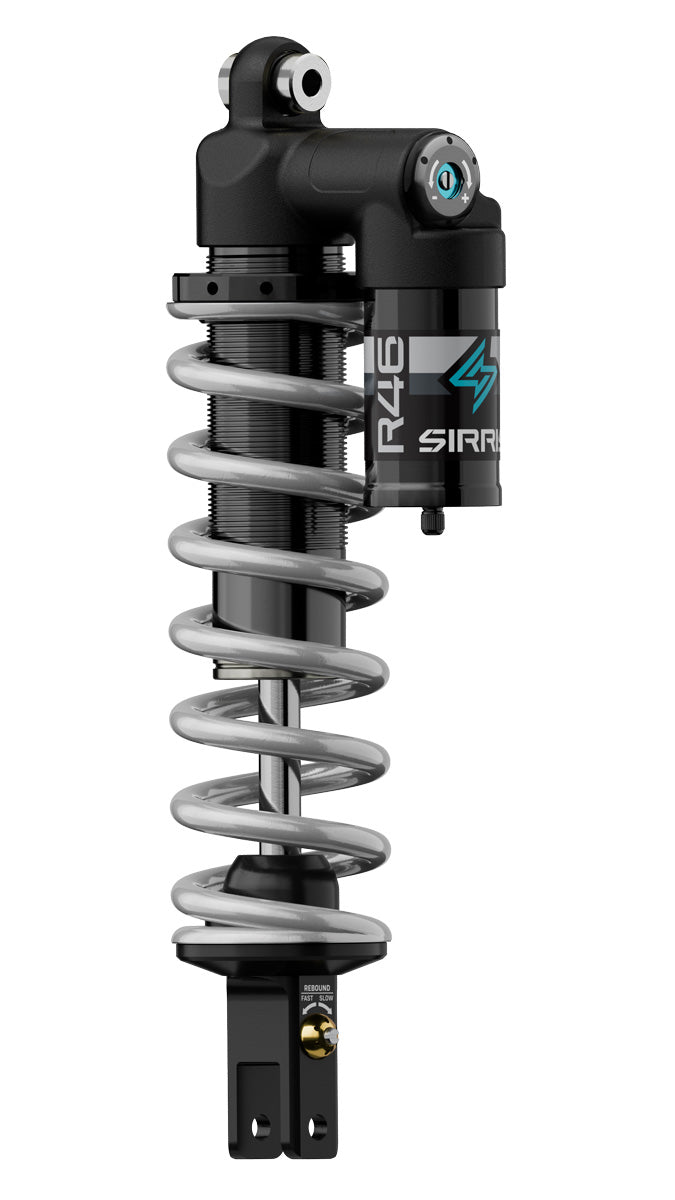

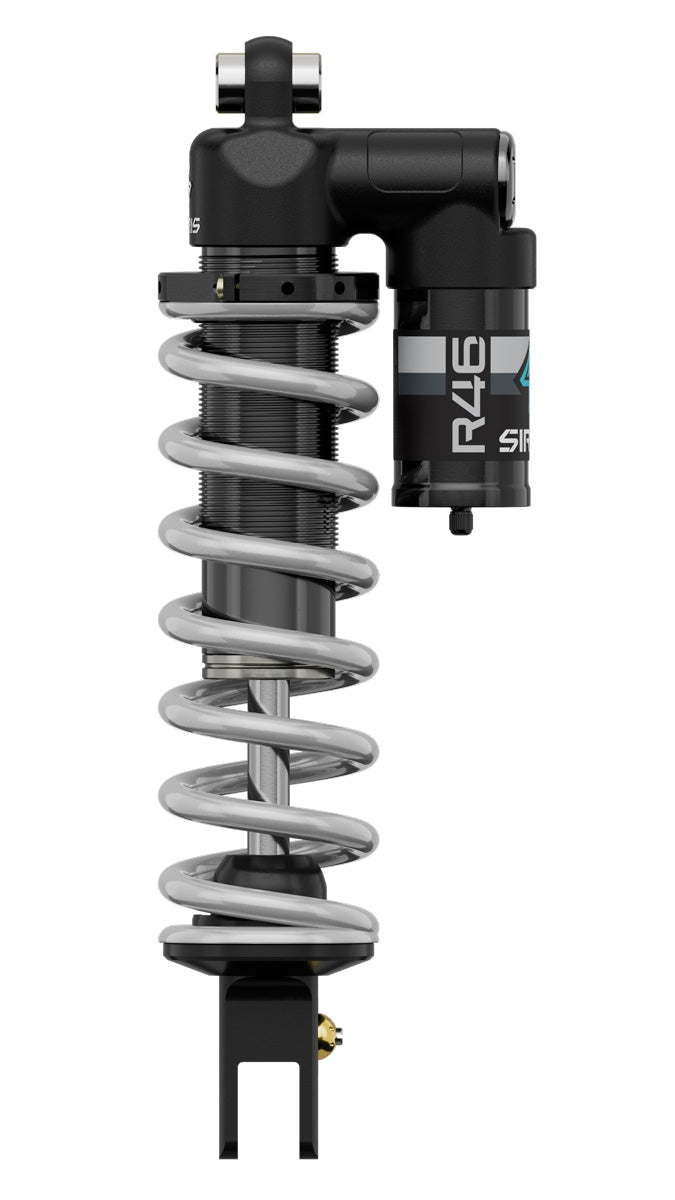

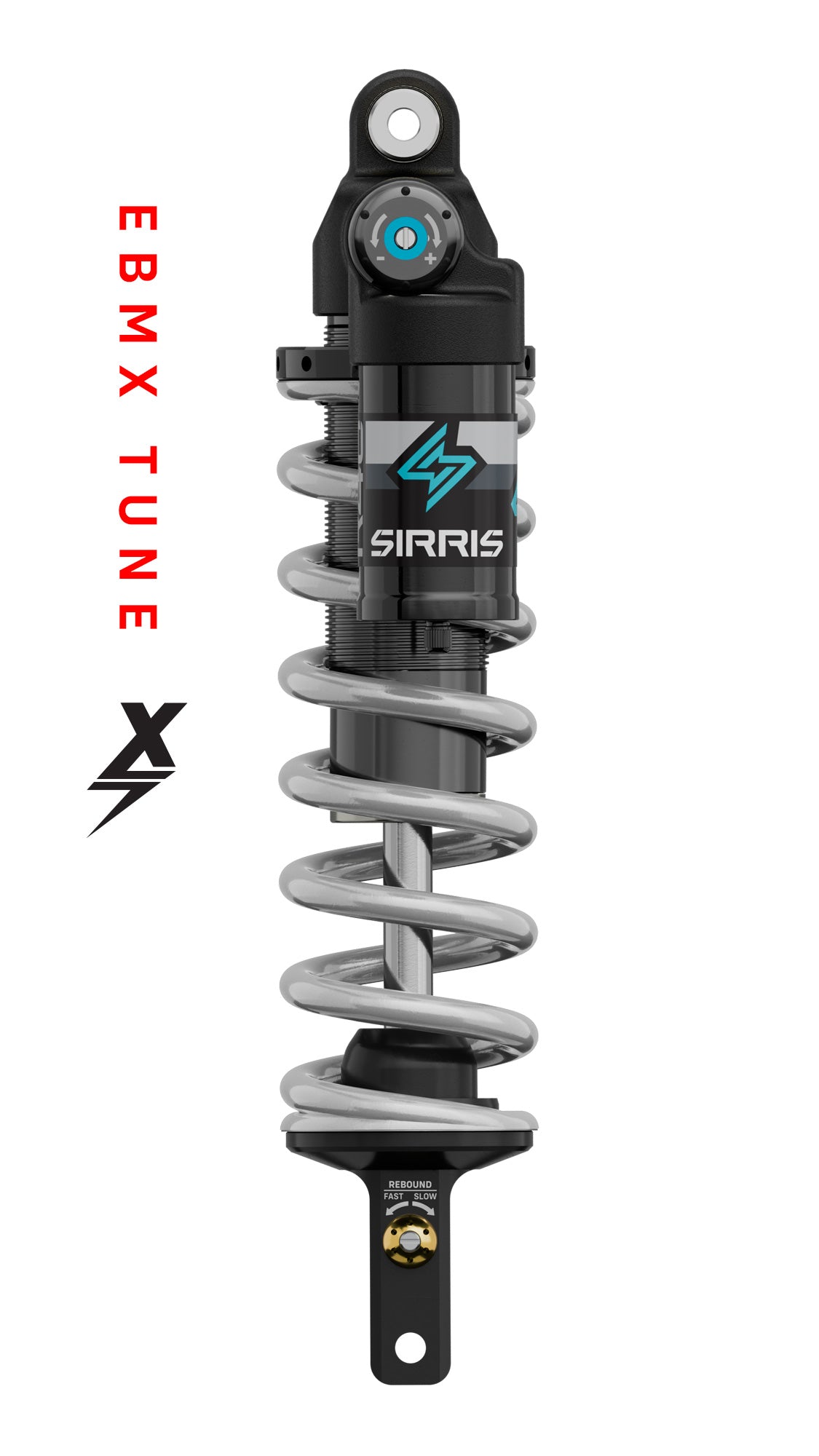

R46 EBMX Tune | LSC
R46 EBMX Tune | LSC
Couldn't load pickup availability
A tune specifically made for modified bikes in collaboration with EBMX. It's designed to work with a longer travel front fork (260mm) and is intended for a mix of light moto and aggressive trail. It uses a firmer tune than Trail tune for bottoming resistance and a stiffer rear spring to handle increased bike weight and power delivery of EBMX components.
RIDER WEIGHT SPECS:
Sirris offers four weight ranges to choose from when selecting your EBMX Tune R46 shock. (Listed weight ranges are rider weight without riding gear on. 15 pounds of riding gear is calculated into the weight ranges)
120 lbs - 160 lbs (Light ships with 95 N/mm spring)
160 lbs - 200 lbs (Medium ships with 105 N/mm spring)
200 lbs - 240 lbs (Heavy ships with 115 N/mm spring)
240 lbs - 280 lbs (X Heavy ships with 115 N/mm spring)
PRODUCT SPECS:
Architecture
Piggyback, steel spring
Stroke
85 mm
Length
320 mm
Weight
3.9 lbs / 1.76 kg without spring
Piston
High flow Ø46 mm, CNC 6061 billet aluminum, type 3 hard anodized coating
Piston band
Hard band
Shaft
Ø16 mm OD chrome-plated, induction hardened steel, hollow, Ø 5.5 mm ID
Shock body
Seamless 6061 aluminum, type 3 hard anodized coating, ACME thread
Spring retainer
Seamless 6061 aluminum, type 3 hard anodized coating, ACME thread, with locking feature, manual adjust
Bottom out
MCU bumper
Top out
Rubber bumper
Damping
Tunable compression and rebound
Reservoir
Pressurized with floating piston
Adjusters
External compression and rebound adjustment
Seals
NBR
