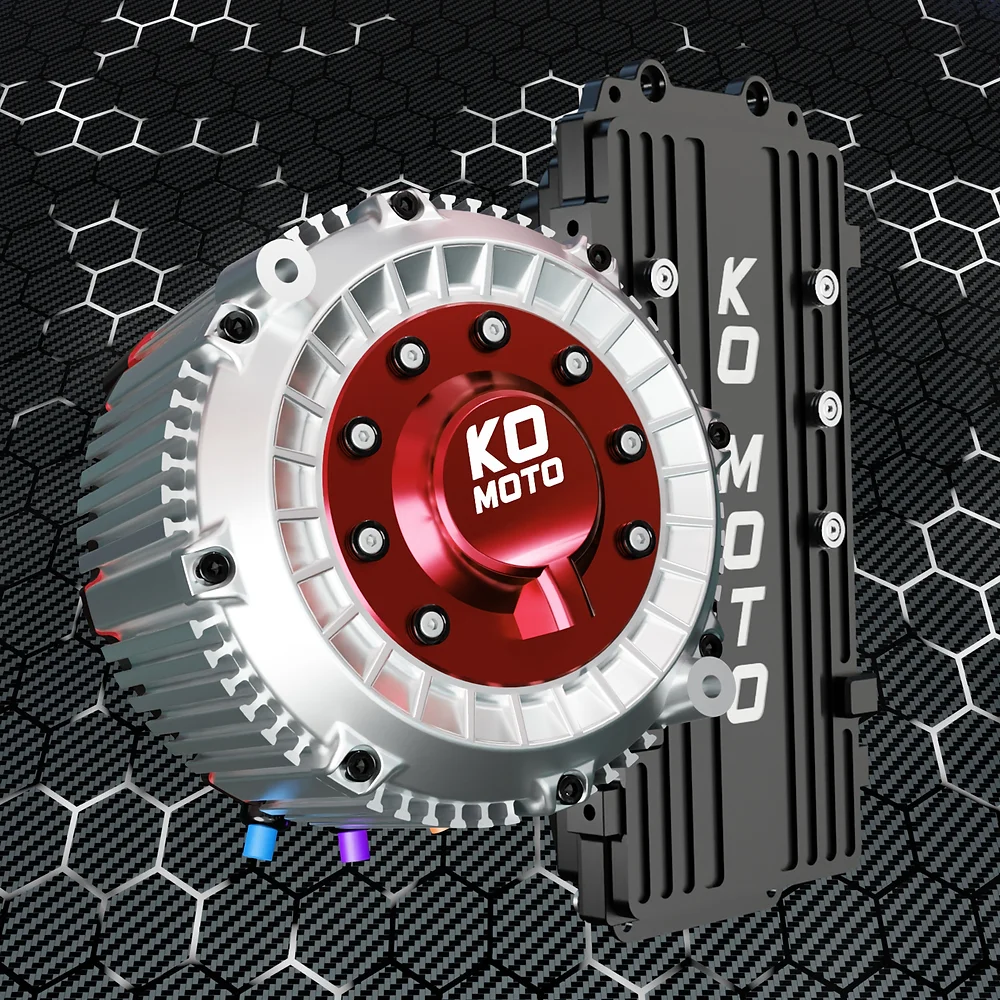

KO RS Su-Ron Motor & Nano Controller Combo

KO RS Su-Ron Motor & Nano Controller Combo

Regular price $1,499.00 USD
Regular price Sale price $1,499.00 USD
Sale Sold out
Tax included.
Color

NOTE: No import fees or shipping fee's for USA customers. Ordering from the manufacturer will result in the same price after shipping and import fees.

**Shipping Lead time approxmiately 2-3 weeks**

Designed from the ground up to give unmatched torque and power, without suffering from all of the issues that plague the stock sur-ron motor & controller offering.

Easy to fit

Both the motor and controller are designed to be a plug and play option in the Sur-Ron and are easy to fit, using the same cabling and also the same default Sur-Ron display unit. Gone is the need to upgrade your display unit and run additional extra cabling across your bike.


Controller Specifications

  • Colour - Black
  • WORKING VOLTAGE - 60-72V Nominal (max voltage 84V)
  • MAX PHASE CURRENT 450A
  • MAX CURRENT 210A
  • MAXIMUM POWER - 17000W
  • OPERATING TERMAPERATURE - -25—80℃
  • INGRESS PROTECTION - IP67
  • MAXIMUM EFFICIENCY - >95%


Motor Specifications

MOTOR CASING FEATURES

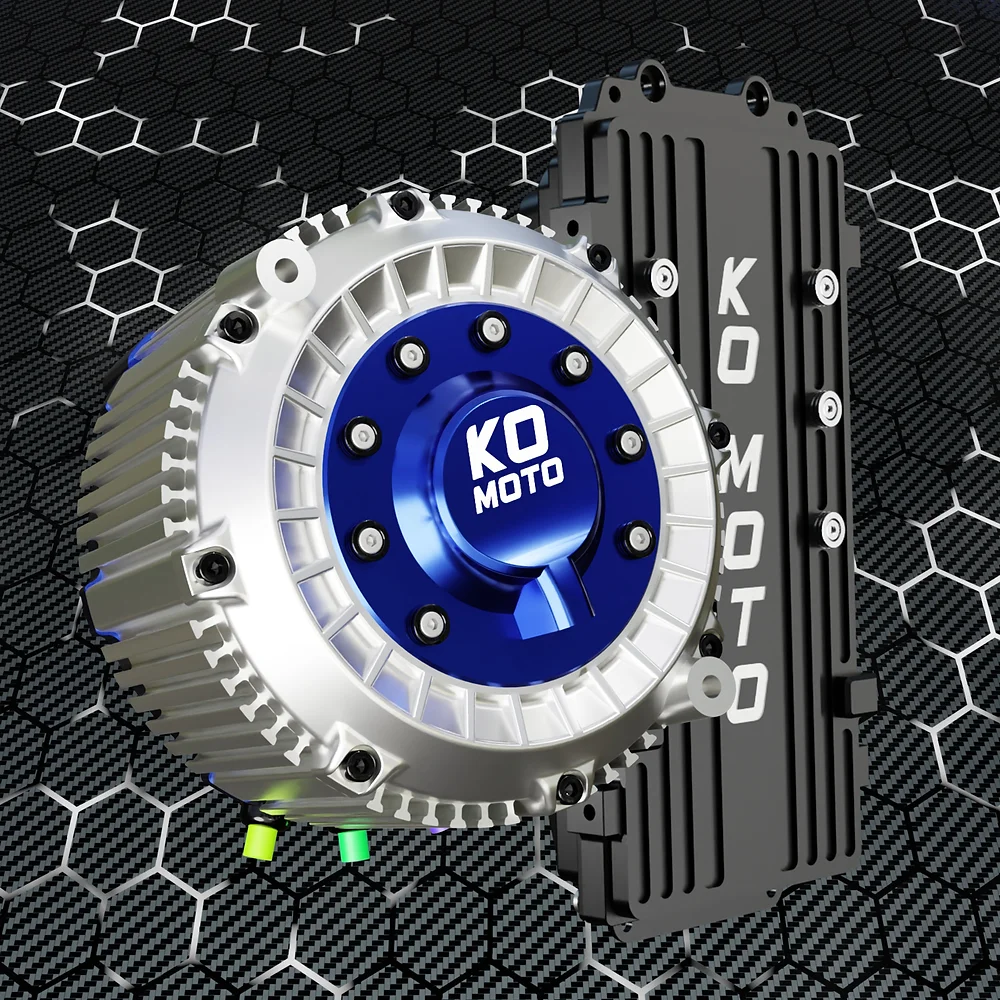

  • Colour - Red and Silver,  Blue and Silver
  • DIRECT DROP IN REPLACEMENT FOR SUR-RON AND SEGWAY X260.

  • MOTORWEIGHT (INCLUDING WIRES) - 10KG,

  • MOTORCYCLE GRADE ANODIZED FINISH FOR MAXIMUM DURABILITY AND HEAT DISPERSION (NOT POWER COATED).

  • 7075 AIRCRAFT GRADE BILLET MACHINED END CAPS AND SENSOR CAP.

  • STAINLESS STEEL WATER PROOF PHASE AND SENSOR WIRE GLANDS.

INTERNAL MOTOR FEATURES​

  • INTERNAL MAGNET MOTOR (IPM) KO DESIGNED MANUFACTURED ROTOR / STATOR.

  • STATOR DIMENSIONS - 160mm X 53mm.

  • WORKING VOLTAGE - 60V-100V.

  • COLD ROLLED SAE 1045 STEEL SHAFT

  • CUSTOM KO DESIGNED AND PATENTED ROTOR AND HEAT SINK DESIGN ALLOWS HEATSOAK DISSIPATION ON THE ENDS OF THE STATOR.

  • KO DESIGNED AND PATENTED INTERNALS PRESSURE EQUALIZATION SYSTEM COMPATIBLE.

  • KO DESIGNED AND PATENTED CRYO COLD AIR INJECTION SYSTEM COMPATIBLE.

  • KO DESIGNED AND MANUFACTURED CRYO ROTOR/ STATOR ANTI CORROSION COATING.

  • INDUSTRY LEADING SKF BEARING AND SEALS FOR THE LOWEST ROLLING RESISTANCE AND EFFICIENCY.

  • JAPANESE SOOURCED 0.35 NIPPON STEEL STATOR / ROTOR LAMINATED.

  • INDUSTRY LEADING 1.5mm AIR GAP.

  • INDUSTRY LEADING 150°C / 302F SH50 NEO MAGNETS.

  • HAND WOUND 220°C HIGH TEMP COPPER WINDINGS.

  • CUSTOM WATERPROOF DESIGNED (IP69)  AND MANUFACTURED HALL SENSOR WITH 12 MONTH REPLACEMENT WARRANTY AGAINST WATER / MOISTURE DAMAGE.

MOTOR OPERATING SPECIFICATION

  • PEAK POWER - 35KW

  • MAX TORQUE @60V - 52NM

  • MAX STABLE ROTOR RPM - 12,000RPM

  • MAX EFFICIENCY 97%


**WARNING* Please note when installing your controller you must use the provided bolts to prevent damage. Using hex bolts can result to too much torque being applied to the connectors which can be damaged or even break off if too much force is applied. We provide Philips heads bolts with the controller to prevent this.

    Fitment

    Sur Ron LBX

    Segway X260

    Segway X160

    Info & Downloads

    Setup Guide by GritShift

    Check out our comprehensive KO Setup Guide for firmware updates and a step-by-step tuning walkthrough!

    Install Guides from KO
