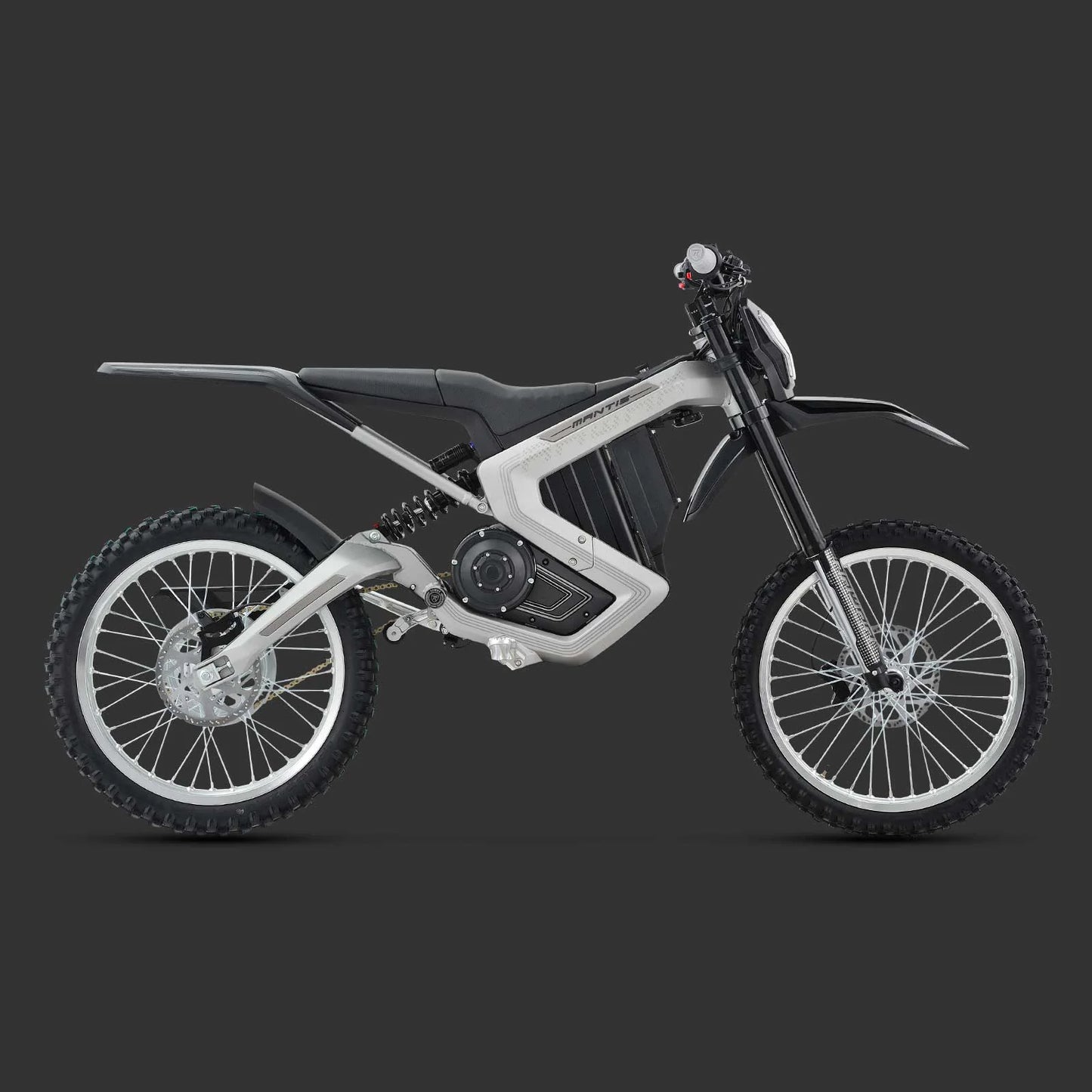

Rawrr 72V Mantis

Rawrr 72V Mantis

Regular price $4,499.00 USD
Regular price Sale price $4,499.00 USD
Sale Sold out
Tax included.
Option
Color

The 72V Rawrr Mantis Electric All-Terrain eMoto is the ultimate choice for adventurers and thrill-seekers who want to conquer any terrain easily.  With its high-performance features and advanced technology, this bike is designed to take you places you never thought possible. 0-30MPS in 2.9 seconds.

The Mantis is larger and more comfortable and provides serious performance.  This means that your Mantis is ready to shred the trails straight from the factory.  The larger frame and longer suspension travel means that it stays comfortable for longer.  The bigger size also means that the Mantis can accommodate big and tall riders.

NOW SHIPPING **IN NEW ENGLAND FOR $150**

SPECS

Range | 75 miles (eco mode)

Length | 76.20 inches

Height | 47.25 inches

Width | 31.30 inches

Ground Clearance | 12.20 inches

Wheelbase | 50.80 inches

Seat Height | 34 inches

Vehicle Weight/W Battery | 130lbs/165lbs

Front Fork Stroke | 7.90 inches

Rear Shock Absorber Stroke | 3.00 inches

Tire Size (Front) | 70/100

Tire Size (Rear) | 80/100

Brake Type | Hydraulic Disc Brake

Controller Type | Mantis FOC Controller

Max Payload | 265 lbs

Front/Back Disc Brake | 203mm

Top Speed | 54MPH

Max Torque for driving wheel | 459NM

Energy Recovery | EABS Brake



BATTERY & CHARGING

Battery Type | Lithium Ion

Battery Cap | 72V 30Ah 2160wh

Range | 75 Mile (Eco mode 15 mph)

Charging Time | 4-6 hours

Charger Input Voltage | AC110/220V



MOTOR

Motor Type | PMSM

Regular Motor Power | 5000W

Max Motor Power | 9500W

Regular Torque | 10 N.M

Max Torque | 50 N.M

Motor Rotation Speed | 5100RPM

Max Motor Rotation Speed | 6200RPM

Motor Efficiency | 94%

Harness IP Rating | IPX67

Electrical IP Rating | IP56

Climbing Ability | 50°+

Cooling Method | Air-Cooled

Insulation Class | H/180℃
